Koelmiddelleiding for BMW 5 Series E34 525ix (1992)

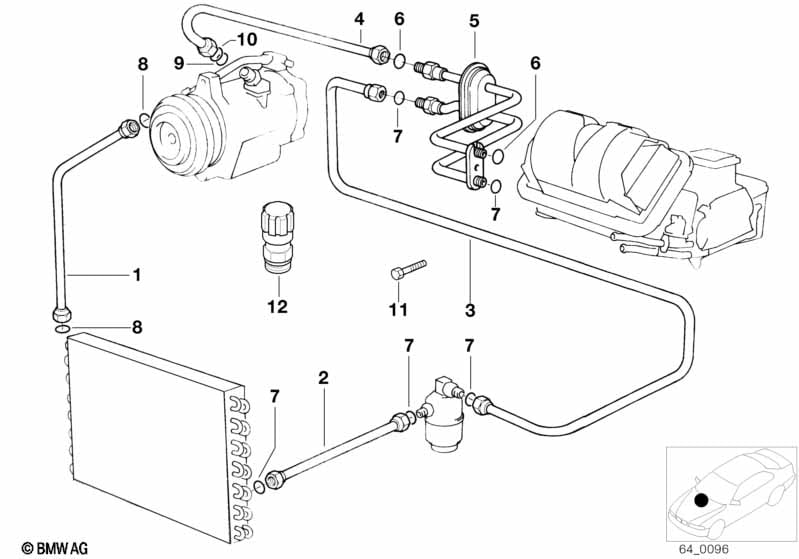

This Koelmiddelleiding technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drukleiding kompressor-kondensator | R12/R134A | 1 | 04/1994 | 64538391309 | $145.83 | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Isa-schroef | M8X25-10.9-ZNS3 | 2 | 04/1994 | 07129904477 | $2.00 | Shop at ECS Tuning | |||
| -- | Cilinderschroef met plaat | M8X30-U1-ZNS3 | 2 | 04/1994 | 07119905720 | $0.47 | Shop at ECS Tuning | |||
| 02 | Drukleiding kondensator-droogfles | R12/R134A | 1 | 04/1994 | 64538390473 | $94.20 | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Isa-schroef | M8X25-10.9-ZNS3 | 2 | 04/1994 | 07129904477 | $2.00 | Shop at ECS Tuning | |||
| -- | Cilinderschroef met plaat | M8X30-U1-ZNS3 | 2 | 04/1994 | 07119905720 | $0.47 | Shop at ECS Tuning | |||
| 03 | Drukleiding dubbele pijp-droogfles | R12 | 1 | 09/1992 | 64538390450 | Vervallen | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Isa-schroef | M8X25-10.9-ZNS3 | 2 | 09/1992 | 07129904477 | $2.00 | Shop at ECS Tuning | |||
| -- | Cilinderschroef met plaat | M8X30-U1-ZNS3 | 2 | 09/1992 | 07119905720 | $0.47 | Shop at ECS Tuning | |||
| 04 | Zuigbus verdamper-kompressor | R12 | 1 | 03/1991 | 09/1992 | 64538390639 | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Isa-schroef | M8X25-10.9-ZNS3 | 2 | 03/1991 | 09/1992 | 07129904477 | $2.00 | Shop at ECS Tuning | ||
| -- | Cilinderschroef met plaat | M8X30-U1-ZNS3 | 2 | 03/1991 | 09/1992 | 07119905720 | $0.47 | Shop at ECS Tuning | ||
| 05 | Dubbelfaldig Pijp | R12/R134A | 1 | 04/1994 | 64538390891 | $153.40 | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Isa-schroef | M8X25-10.9-ZNS3 | 2 | 04/1994 | 07129904477 | $2.00 | Shop at ECS Tuning | |||
| -- | Cilinderschroef met plaat | M8X30-U1-ZNS3 | 2 | 04/1994 | 07119905720 | $0.47 | Shop at ECS Tuning | |||
| 06 | Afdichtring | D=17,17MM | 2 | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 06 | Afdichtring | D=6.8 R12/R134A | 2 | 64508390605 | $2.51 | Shop at ECS Tuning | ||||
| 07 | Afdichtring | D=7,65MM | 5 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Afdichtring | D=11.1MM | 2 | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 08 | Afdichtring | D=11.1MM | 2 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 10 | Afdichtring | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| SLECHTS PASSEND BIJ DRUKLEIDING |
||||||||||
| 12 | Binnenventiel drukleiding | R134A | 1 | 08/2003 | 64538391215 | $9.32 | Vervallen | Shop at ECS Tuning | ||
| 12 | Binnenventiel drukleiding | R134A | 1 | 64509177577 | $10.87 | Shop at ECS Tuning | ||||
| SLECHTS PASSEND BIJ ZUIGLEIDING |
||||||||||
| 12 | Binnenventiel aanzuigleiding | R134A | 1 | 64509177579 | $10.87 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
