Koelmiddelleidingen airco achterin for BMW 7 Series F02 750Li

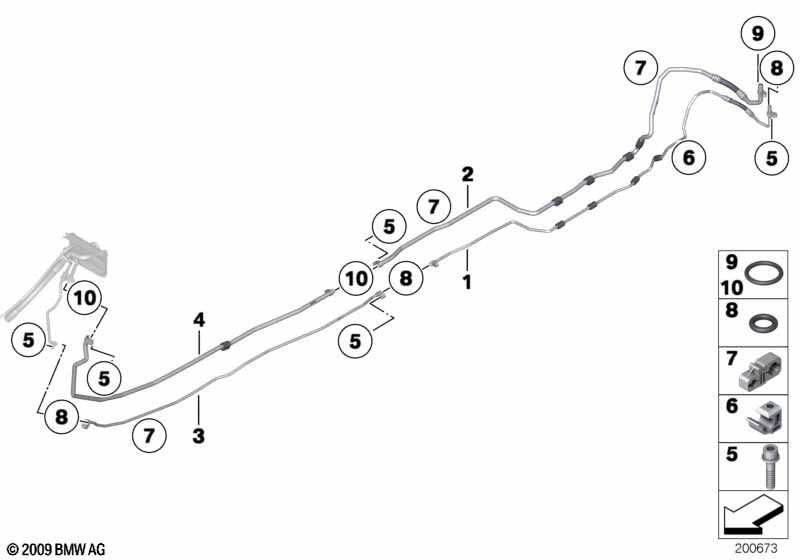

This Koelmiddelleidingen airco achterin technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met Uitgebreide temp.regeling achtercomp. |
S4NFA=Ja |
||||||||
| 01 | Drukleiding onderbodem deel 2 | 1 | 64539167144 | +core | Shop at ECS Tuning | |||||
| 02 | Aanzuigleiding onderbodem deel 2 | 1 | 64539167140 | +core | Shop at ECS Tuning | |||||
| 03 | Drukleiding onderbodem deel 1 | 1 | 64539167143 | +core | Shop at ECS Tuning | |||||
| 04 | Aanzuigleiding onderbodem deel 1 | 1 | 64539144935 | +core | Shop at ECS Tuning | |||||
| 05 | Torxbout met ring | M6X25-U1-8.8 | 5 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Klem | 1 | 35511161876 | $0.72 | Shop at ECS Tuning | |||||
| 07 | Dubbele clip | 4 | 64539167146 | Shop at ECS Tuning | ||||||
| 08 | Afdichtring | 9,5X2,5 | 3 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 09 | Afdichtring | D=13,7 MM | 1 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 10 | Afdichtring | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
Notities
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
