Koelvloeistofslangen interieurvoorverw for BMW 7 Series G12 LCI 730LdX (2020)

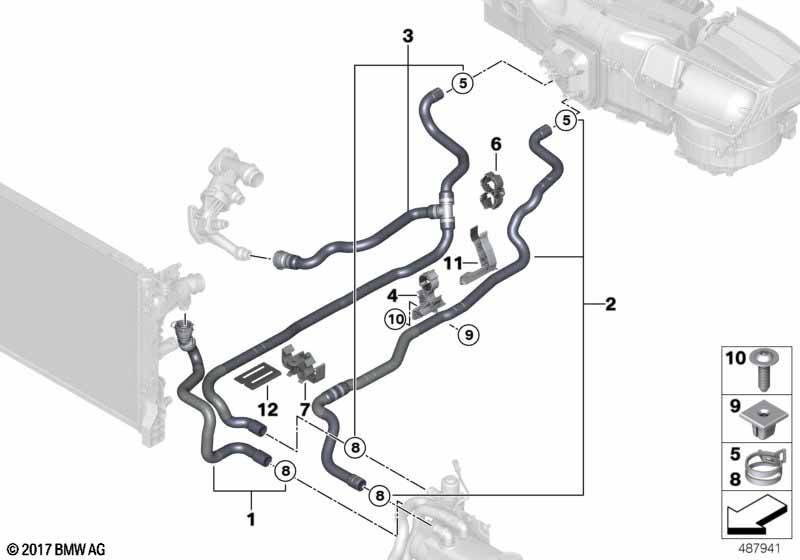

This Koelvloeistofslangen interieurvoorverw technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met Parkeerverwarming |
S536A=Ja |
||||||||
| 01 | Koelvloeistofslang toevoer 1 | 1 | 64219299661 | Shop at ECS Tuning | ||||||
| 03 | Koelwaterslang retour | 1 | 64219348173 | Shop at ECS Tuning | ||||||
| 04 | Gecombineerde bevestiging | 1 | 64539303491 | Shop at ECS Tuning | ||||||
| 05 | Verende klem | D=25MM | 2 | 64213405930 | Shop at ECS Tuning | |||||
| 06 | Slanghouder dubbel | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 07 | Dubbele clip | 1 | 64219326894 | Shop at ECS Tuning | ||||||
| 08 | Slangklem | D=27MM | 3 | 64219182742 | Shop at ECS Tuning | |||||
| 09 | Spanmoer | 1 | 07147348512 | Shop at ECS Tuning | ||||||
| 10 | Lenskopschroef | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Slanghouder dubbel | 1 | 64219128983 | Shop at ECS Tuning | ||||||
| 12 | Schuurbescherming | 1 | 64219385206 | Shop at ECS Tuning | ||||||
