Onderdelen deur achter top-hifi-systeem for BMW 7 Series E38 735i (1995)

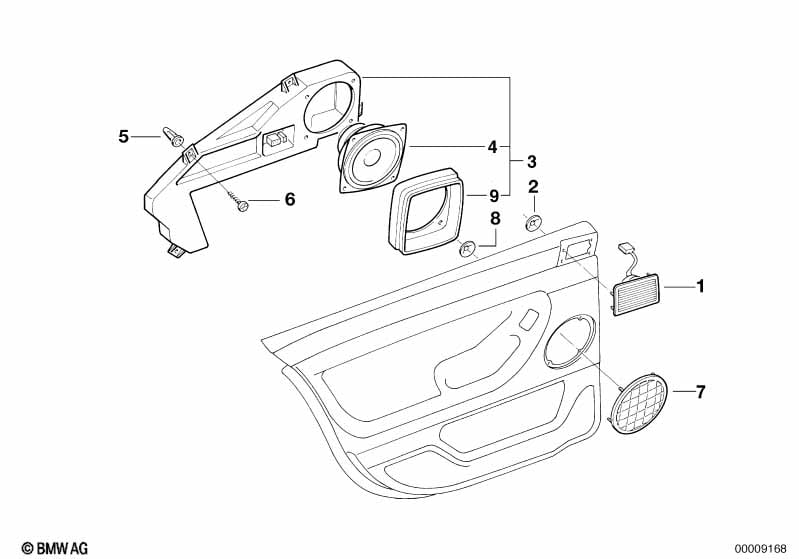

This Onderdelen deur achter top-hifi-systeem technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met HiFi System Professional DSP |
S677A=Ja |
||||||||
| 01 | Middenklemtoon-luidspreker L.top hifi | SCHWARZ | 1 | 65138352439 | $87.60 | +core | Shop at ECS Tuning | |||
| 01 | Middenklemtoon-luidspreker R. top hifi | SCHWARZ | 1 | 65138352440 | $87.60 | Vervallen, +core | Shop at ECS Tuning | |||
| 01 | Middenklemtoon-luidspreker L.top hifi | MARINEBLAU | 1 | 65138352711 | $77.56 | Vervallen, +core | Shop at ECS Tuning | |||
| 01 | Middenklemtoon-luidspreker R. top hifi | MARINEBLAU | 1 | 65138352712 | $77.56 | Vervallen, +core | Shop at ECS Tuning | |||
| 01 | Middenklemtoon-luidspreker L.top hifi | DUNKELGRUEN | 1 | 65138352713 | $87.60 | Vervallen, +core | Shop at ECS Tuning | |||
| 01 | Middenklemtoon-luidspreker R. top hifi | DUNKELGRUEN | 1 | 65138352714 | $87.60 | Vervallen, +core | Shop at ECS Tuning | |||
| 01 | Middenklemtoon-luidspreker L.top hifi | DUNKELBEIGE | 1 | 65138375017 | $87.60 | +core | Shop at ECS Tuning | |||
| 01 | Middenklemtoon-luidspreker R. top hifi | DUNKELBEIGE | 1 | 65138375018 | $87.60 | +core | Shop at ECS Tuning | |||
| 02 | Veermoer | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 03 | Luidsprekerbox deur achter links | TOP-HIFI-SYSTEM | 1 | 65138352433 | $126.38 | Shop at ECS Tuning | ||||
| 03 | Luidsprekerbox deur achter rechts | TOP-HIFI-SYSTEM | 1 | 65138352434 | $126.38 | Shop at ECS Tuning | ||||
| 04 | Luidspreker | TOP-HIFI-SYSTEM | 2 | 65138352689 | $51.27 | +core | Shop at ECS Tuning | |||
| 05 | Spanmoer | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Verz.bolkopschroef | ST4,8X16 | 8 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Luidsprekerscherm | SCHWARZ | 2 | 51418178241 | $16.05 | Vervallen | Shop at ECS Tuning | |||
| 07 | Luidsprekerscherm | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Luidsprekerscherm | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Luidsprekerscherm | DUNKELGRUEN | 2 | 51418179000 | $14.13 | Vervallen | Shop at ECS Tuning | |||
| 07 | Luidsprekerscherm | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Luidsprekerscherm | LAVENDELGRAU | 2 | 51418190826 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Luidsprekerscherm | PASTELLGRUEN | 2 | 51418190827 | Vervallen | Shop at ECS Tuning | ||||
| Voor voertuigen met Chrome-Line/SA345 |
=Ja |
|||||||||
| 07 | Luidsprekerscherm | SCHWARZ | 2 | 51418216716 | $26.75 | Shop at ECS Tuning | ||||
| 07 | Luidsprekerscherm | GRAU | 2 | 51418216717 | $13.38 | Vervallen | Shop at ECS Tuning | |||
| 07 | Luidsprekerscherm | MARINEBLAU | 2 | 51418216718 | $13.38 | Vervallen | Shop at ECS Tuning | |||
| 07 | Luidsprekerscherm | SANDBEIGE | 2 | 51418216719 | $13.38 | Shop at ECS Tuning | ||||
| 07 | Luidsprekerscherm | LAVENDELGRAU | 2 | 51418216720 | $14.17 | Vervallen | Shop at ECS Tuning | |||
| 07 | Luidsprekerscherm | DUNKELGRUEN | 2 | 51418216721 | $13.38 | Vervallen | Shop at ECS Tuning | |||
| 07 | Luidsprekerscherm | PASTELLGRUEN | 2 | 51418216722 | $14.17 | Vervallen | Shop at ECS Tuning | |||
| 08 | Veermoer | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 09 | Geluidsisolatiering voor luidspreker | 2 | 65138369083 | $9.28 | Shop at ECS Tuning | |||||
Notities
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
- Vervallen = het onderdeel is niet meer leverbaar.
