diefstalbeveiligingssysteem for BMW 5 Series E39 525tds (1996)

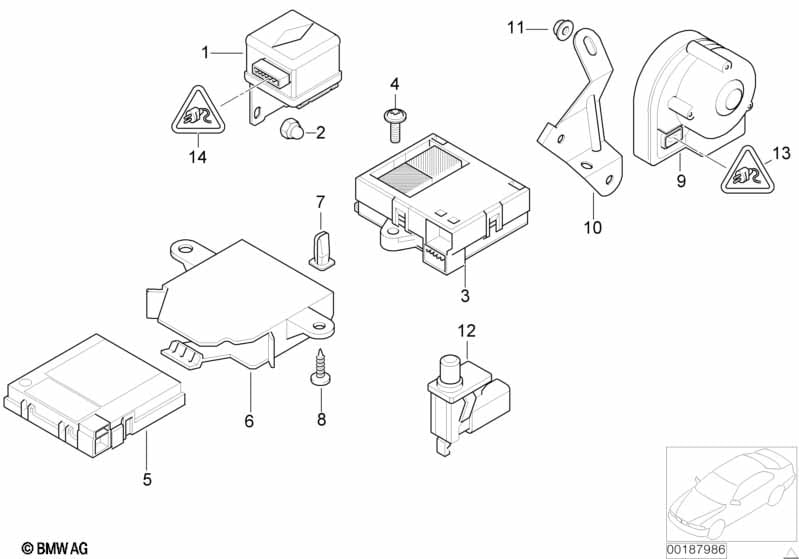

This diefstalbeveiligingssysteem technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inclinatie-indicator | 1 | 09/1998 | 65756923215 | $156.60 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Adapterbijping v inclinatie-indicator | 1 | 09/1998 | 65758380747 | $12.67 | Shop at ECS Tuning | ||||
| 02 | Dopmoer | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Ultrasoon moduul | 1 | 03/1998 | 65756938049 | $163.68 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Adapterbijping | 1 | 03/1998 | 65758385535 | $21.78 | Shop at ECS Tuning | ||||
| -- | Bevestiging ultrasoonmoduul onder | 1 | 03/1998 | 51448243665 | $5.33 | Vervallen | Shop at ECS Tuning | |||
| -- | Sierafdekk.ultrasone interieurbeveiligng | HELLGRAU | 1 | 03/1998 | 51448249975 | $55.40 | Shop at ECS Tuning | |||
| -- | Sierafdekk.ultrasone interieurbeveiligng | HELLBEIGE | 1 | 03/1998 | 51448249976 | $55.40 | Vervallen | Shop at ECS Tuning | ||
| -- | Sierafdekk.ultrasone interieurbeveiligng | SCHWARZ | 1 | 03/1998 | 51448249977 | $55.40 | Shop at ECS Tuning | |||
| -- | Bevestiging ultrasoonmoduul ovan | 1 | 03/1998 | 51448249978 | $5.42 | Vervallen | Shop at ECS Tuning | |||
| -- | Onderlegger | L=100MM | 1 | 03/1998 | 16111181918 | $1.65 | Shop at ECS Tuning | |||
| 04 | Schroef | 4X14MM | 2 | 03/1998 | 07146963839 | $0.20 | Shop at ECS Tuning | |||
| Voor voertuigen met Schuifhefdak elektr. of Glasdak elektr. |
S401A=Ja S403A=Ja |
|||||||||
| 04 | Schroef | TS4X10MM | 2 | 03/1998 | 07129907533 | Shop at ECS Tuning | ||||
| 05 | Modul radio-interieurbeveiliging achter | 1 | 03/1998 | 65758375548 | Vervallen | Shop at ECS Tuning | ||||
| 06 | Inschuifbox | 1 | 03/1998 | 65758369074 | $1.41 | Vervallen | Shop at ECS Tuning | |||
| 07 | Spanmoer | ST 4.8 WEISS | 2 | 03/1998 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 08 | Verz.bolkopschroef | ST4,8X16 | 2 | 03/1998 | 07147137416 | $0.20 | Shop at ECS Tuning | |||
| 09 | SIirene met noodvoeding | 1 | 65758383152 | $141.92 | Shop at ECS Tuning | |||||
| 10 | Bevestiging sirenc met noodvoeding | 1 | 65758368269 | $5.13 | Shop at ECS Tuning | |||||
| 11 | Zeskantige moer | 1 | 03/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 11 | Zeskantige moer | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Schakelaar | 1 | 61319119057 | $14.12 | Shop at ECS Tuning | |||||
| 13 | Univers. stopcontacthuis zonder code | 4 POL. | 1 | 61138365356 | $3.10 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Buscontact MQS ELA met kabel | 0,5-0,75 MM² AG | 4 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Buscontact MQS ELA met kabel | 0,35-0,5 MM² AG | 4 | 61130056961 | Shop at ECS Tuning | |||||
| 14 | Univers. stopcontacthuis zonder code | 6 POL. | 1 | 12/2003 | 61136909058 | $1.15 | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Buscontact MQS met kabel | 0,2- 0,5 QMM | 6 | 12/2003 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Buscontact MQS met kabel | 0,5-0,75 MM² AG | 6 | 12/2003 | 61130056960 | Shop at ECS Tuning | ||||
| 14 | Rep.-set bushuis | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Buscontact MQS met kabel | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Buscontact MQS met kabel | 0,5-0,75 MM² AG | 6 | 61130056960 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
