Magneetveldsonde/GPS-antenne for BMW 5 Series E39 520i (1998)

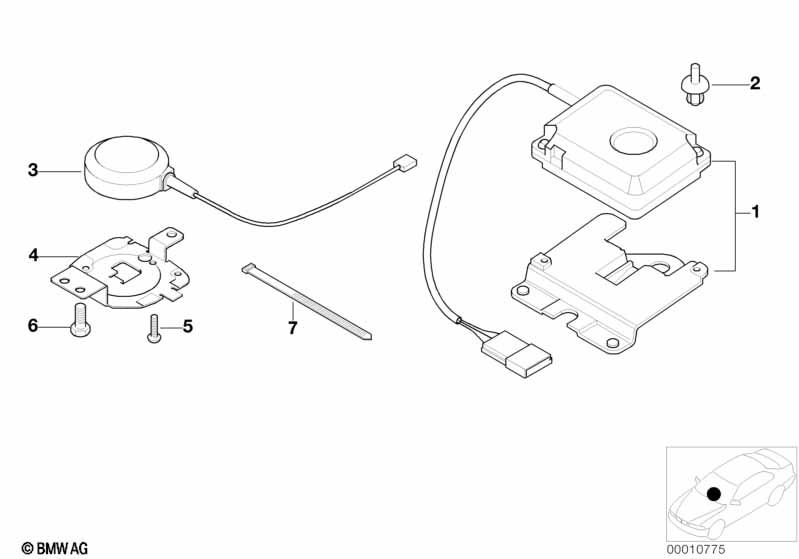

This Magneetveldsonde/GPS-antenne technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | GPS-antenne | 1 | 09/1997 | 65908375944 | $165.22 | Shop at ECS Tuning | ||||
| 04 | Bevestiging Gps-antenne | 1 | 65908360722 | $3.89 | Shop at ECS Tuning | |||||
| 06 | Zeskantige Schroef | M6X12MM | 2 | 09/1999 | 51458209089 | $0.66 | Shop at ECS Tuning | |||
| 07 | Kabelband | L=100MM/B=2,5MM | 1 | 61131372391 | $0.08 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 520i Magneetveldsonde/GPS-antenne?
- This technical diagram illustrates the Magneetveldsonde/GPS-antenne within the Audio, Navigatie, elektron.Systeem group for the 5 Series E39 520i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the GPS-antenne (Part #65908375944).
- Which models use the hardware listed in this Magneetveldsonde/GPS-antenne?
- The hardware and components featured in the Magneetveldsonde/GPS-antenne are specific to the 5 Series E39 520i produced during 1998. These technical specifications ensure that parts like the GPS-antenne (65908375944) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Magneetveldsonde/GPS-antenne assembly?
- Each item in the Magneetveldsonde/GPS-antenne corresponds to the numbered list below the illustration. For the 5 Series E39 520i, you can identify the GPS-antenne by locating its position on the schematic, which then links to the official BMW part number 65908375944 for the Audio, Navigatie, elektron.Systeem section.
