Afst.bed. centr.vergr./diefstalal. for BMW 7 Series E38 735i (1995)

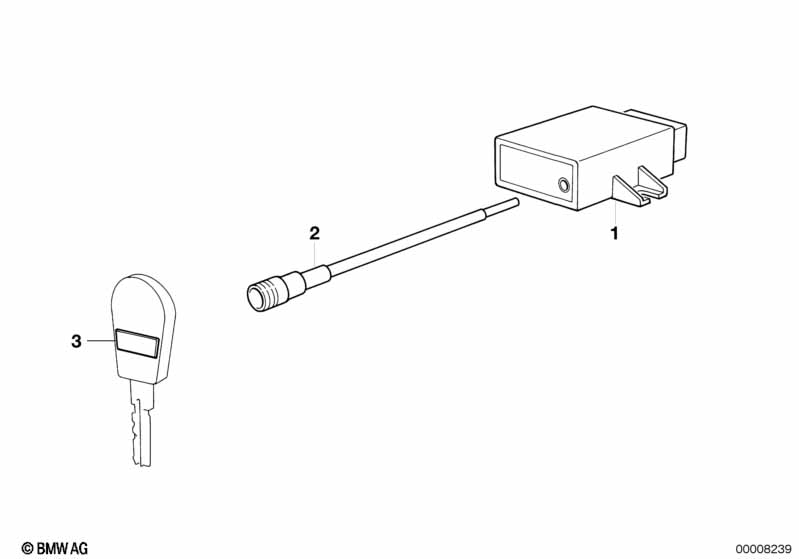

This Afst.bed. centr.vergr./diefstalal. technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Radio afstandsbediening |
=Ja |
|||||||||
| 01 | Stuurtoestel radio afstandsbediening | 1 | 66128361944 | $254.45 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Antenne-kabel radioafstandsbediening | 1 | 66128362095 | Vervallen | Shop at ECS Tuning | |||||
| 03 | Afdekking radioafstandsbediening | N/SF/GR/I | 1 | 09/1996 | 66128363426 | Shop at ECS Tuning | ||||
| 03 | Afdekking radioafstandsbediening | TAIWAN | 1 | 07/2001 | 66128370026 | Vervallen | Shop at ECS Tuning | |||
| 03 | Afdekking radioafstandsbediening | US/CAN/AUS/TAIW | 1 | 61316920842 | $5.37 | Shop at ECS Tuning | ||||
| 03 | Afdekking radioafstandsbediening | 433 MHZ | 1 | 61316920841 | Shop at ECS Tuning | |||||
| 03 | Afdekking radioafstandsbediening | NL | 1 | 66128363421 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Afdekking radioafstandsbediening | PL | 1 | 66128363429 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Afdekking radioafstandsbediening | D | 1 | 66128369082 | Shop at ECS Tuning | |||||
| 03 | Afdekking radioafstandsbediening | CH | 1 | 66128369481 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Afdekking radioafstandsbediening | USA/CDN/AUS | 1 | 66128369723 | $4.70 | Shop at ECS Tuning | ||||
| 03 | Afdekking radioafstandsbediening | SWE | 1 | 66128370036 | Shop at ECS Tuning | |||||
| 03 | Afdekking radioafstandsbediening | B | 1 | 66128373030 | Shop at ECS Tuning | |||||
| 03 | Afdekking radioafstandsbediening | F | 1 | 66128374916 | Shop at ECS Tuning | |||||
| 03 | Afdekking radioafstandsbediening | GB | 1 | 66128377839 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Afdekking radioafstandsbediening | E | 1 | 66128379629 | $5.74 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
