Losse delen centrale bas for BMW 5 Series G30 LCI 520dX (2022)

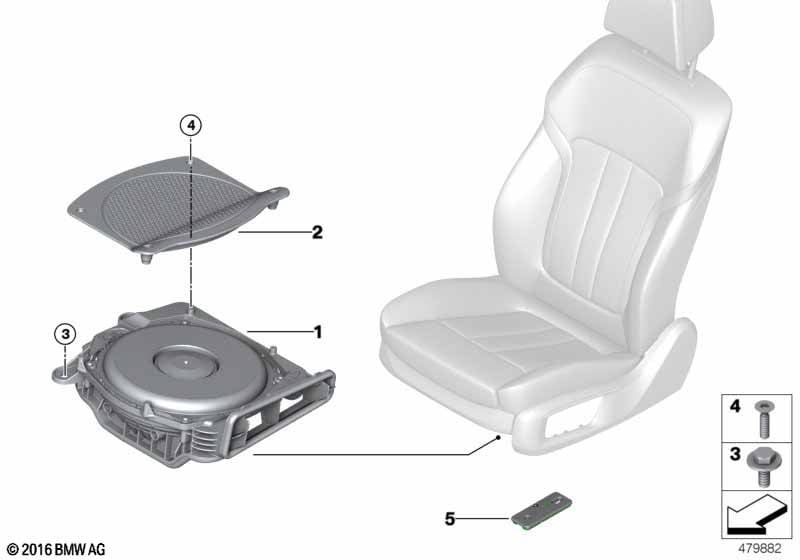

This Losse delen centrale bas technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 01 | Centrale bas links | 1 | 65136801099 | Shop at ECS Tuning | ||||||
| 01 | Centrale bas rechts | 1 | 65136801100 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S688A=Ja S6F1A=Nee |
|||||||||
| 01 | Centrale bas links | 1 | 65136801075 | Shop at ECS Tuning | ||||||
| 01 | Centrale bas rechts | 1 | 65136801076 | Shop at ECS Tuning | ||||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Nee S688A=Nee S6F1A=Nee |
|||||||||
| 01 | Centrale bas links | 1 | 65139395861 | Shop at ECS Tuning | ||||||
| 01 | Centrale bas rechts | 1 | 65139395862 | Shop at ECS Tuning | ||||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nee S6F1A=Nee |
|||||||||
| 01 | Centrale bas links | 1 | 65136800953 | Shop at ECS Tuning | ||||||
| 01 | Centrale bas rechts | 1 | 65136800954 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 02 | Paneel centrale bass | 2 | 65139362370 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Bowers & Wilkins High End Sound System |
S6F1A=Nee |
|||||||||
| 02 | Paneel centrale bass | 2 | 65139355524 | Shop at ECS Tuning | ||||||
| 03 | Zeskantige schroef met schijf | M6X16-U2-ZNS3 | 8 | 07119902913 | Shop at ECS Tuning | |||||
| 04 | Verzinkschroef | 8 | 51337068211 | $0.19 | Shop at ECS Tuning | |||||
| 05 | Wateraflooptule | 2 | 65136801309 | Shop at ECS Tuning | ||||||
