Onderdelen antenne for BMW 7 Series G12 LCI 730LdX (2020)

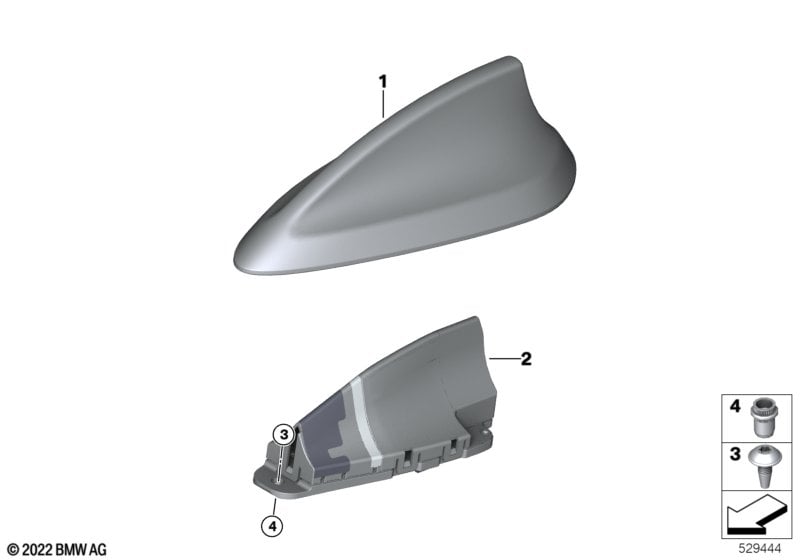

This Onderdelen antenne technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Leer huis dakantenne grondverf | 1 | 65209371344 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Teleservices en Wettelijke noodoproep en BMW Live Cockpit Professional |
S6AEA=Ja S6AFA=Ja S6U3A=Ja |
|||||||||
| 02 | Dakantenne | 1 | 05/2017 | 65206826326 | Shop at ECS Tuning | |||||
| 03 | Lenskopschroef | M5X14 | 1 | 07129909494 | Shop at ECS Tuning | |||||
| Standaard | ||||||||||
| 03 | Torx-bout met plaat | M6X12 | 1 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| Reparatiehandleiding in acht nemen | ||||||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 LCI 730LdX Onderdelen antenne?
- This technical diagram illustrates the Onderdelen antenne within the Audio, Navigatie, elektron.Systeem group for the 7 Series G12 LCI 730LdX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Leer huis dakantenne grondverf (Part #65209371344).
- Which models use the hardware listed in this Onderdelen antenne?
- The hardware and components featured in the Onderdelen antenne are specific to the 7 Series G12 LCI 730LdX produced during 2020. These technical specifications ensure that parts like the Leer huis dakantenne grondverf (65209371344) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Onderdelen antenne assembly?
- Each item in the Onderdelen antenne corresponds to the numbered list below the illustration. For the 7 Series G12 LCI 730LdX, you can identify the Leer huis dakantenne grondverf by locating its position on the schematic, which then links to the official BMW part number 65209371344 for the Audio, Navigatie, elektron.Systeem section.
