Losse onderdelen antenne comforttoegang for BMW 5 Series G30 LCI 520dX (2022)

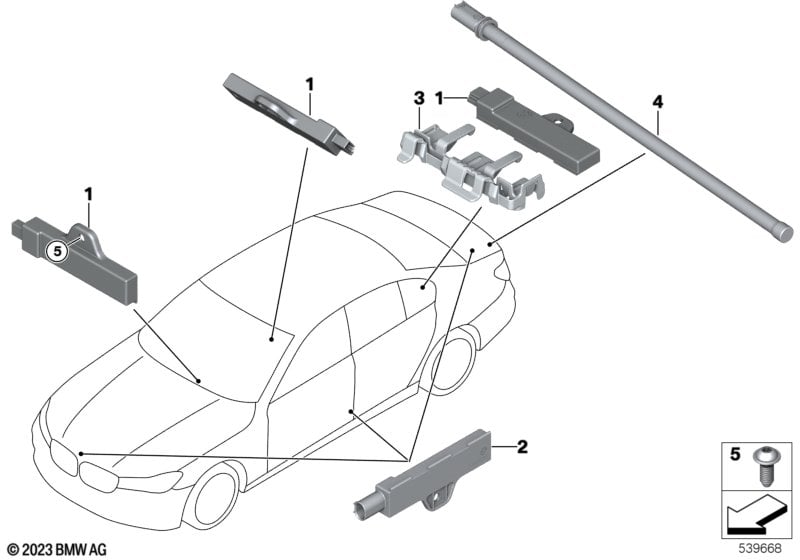

This Losse onderdelen antenne comforttoegang technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interieurantenne Comfort Access | 1 | 65205A5D3C0 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Comforttoegang Achterbumper achter midden |
S322A=Ja |
|||||||||
| 02 | Buitenantenne comforttoegang | 1 | 07/2020 | 65206832066 | Shop at ECS Tuning | |||||
| Voor voertuigen met Comforttoegang en Op afstand bediend parkeren |
S322A=Ja S5DVA=Ja |
|||||||||
| 02 | Buitenantenne comforttoegang | 2 | 65206832066 | Shop at ECS Tuning | ||||||
| Zijskirt links en rechts | ||||||||||
| Voor voertuigen met Comforttoegang en Op afstand bediend parkeren |
S322A=Ja S5DVA=Nee |
|||||||||
| 02 | Buitenantenne comforttoegang | 2 | 65206832066 | Shop at ECS Tuning | ||||||
| Zijskirt links en rechts | ||||||||||
| Voor voertuigen met Comforttoegang en Op afstand bediend parkeren |
S322A=Nee S5DVA=Ja |
|||||||||
| 02 | Buitenantenne comforttoegang | 2 | 65206832066 | Shop at ECS Tuning | ||||||
| Zijskirt links en rechts | ||||||||||
| Voor voertuigen met Comforttoegang |
S322A=Ja |
|||||||||
| 03 | Houder antenne bagageruimte | 1 | 61359331172 | Shop at ECS Tuning | ||||||
| MIDDENCONSOLE | ||||||||||
| 05 | Schroef | TS 5X12 | 1 | 07129908078 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 520dX Losse onderdelen antenne comforttoegang?
- This technical diagram illustrates the Losse onderdelen antenne comforttoegang within the Audio, Navigatie, elektron.Systeem group for the 5 Series G30 LCI 520dX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Interieurantenne Comfort Access (Part #65205A5D3C0).
- Which models use the hardware listed in this Losse onderdelen antenne comforttoegang?
- The hardware and components featured in the Losse onderdelen antenne comforttoegang are specific to the 5 Series G30 LCI 520dX produced during 2022. These technical specifications ensure that parts like the Interieurantenne Comfort Access (65205A5D3C0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Losse onderdelen antenne comforttoegang assembly?
- Each item in the Losse onderdelen antenne comforttoegang corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 520dX, you can identify the Interieurantenne Comfort Access by locating its position on the schematic, which then links to the official BMW part number 65205A5D3C0 for the Audio, Navigatie, elektron.Systeem section.
