Luidspreker instrumentenpaneel for BMW 5 Series G30 LCI 520dX (2022)

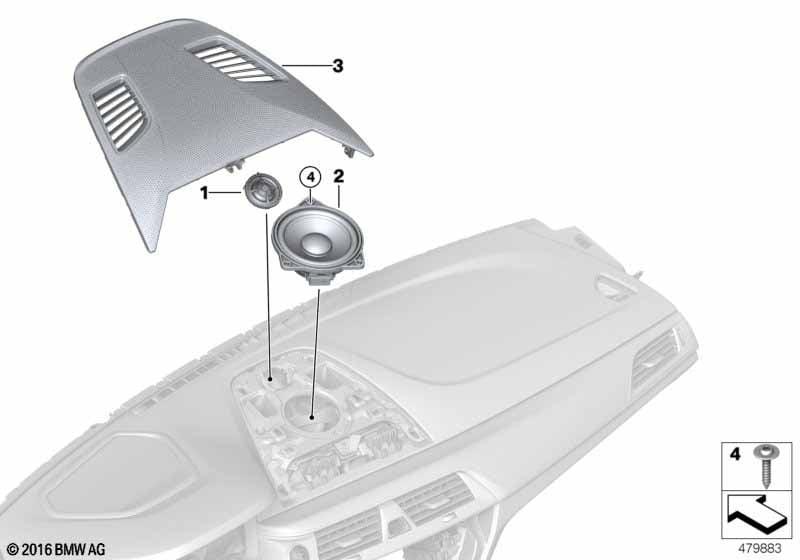

This Luidspreker instrumentenpaneel technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 01 | Hoogtoonluidspreker | ALEV 4 | 1 | 65132622773 | Shop at ECS Tuning | |||||
| Voor voertuigen met Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S688A=Ja S6F1A=Nee |
|||||||||
| 01 | Klemtoonluidspreker top-hifi | 1 | 65139362561 | Shop at ECS Tuning | ||||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nee S6F1A=Nee |
|||||||||
| 01 | Hoogtoonluidspreker Hifi-System | 1 | 65139362560 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 02 | Middentonen-luidspreker | HIGH END | 1 | 65139279632 | Shop at ECS Tuning | |||||
| Voor voertuigen met Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S688A=Ja S6F1A=Nee |
|||||||||
| 02 | Middentonen-luidspreker top-hifi | ALEV3 | 1 | 65132622468 | Shop at ECS Tuning | |||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nee S6F1A=Nee |
|||||||||
| 02 | Middentonenluidspreker | HIFI | 1 | 65139354084 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 03 | Lijst centerspeaker | 1 | 65139365189 | Shop at ECS Tuning | ||||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Ja S6F1A=Nee |
|||||||||
| 03 | Lijst centerspeaker | 1 | 51459329561 | Shop at ECS Tuning | ||||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nee S6F1A=Nee |
|||||||||
| 03 | Lijst centerspeaker | 1 | 51459329561 | Shop at ECS Tuning | ||||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Nee S688A=Ja S6F1A=Nee |
|||||||||
| 03 | Lijst centerspeaker | 1 | 51459329561 | Shop at ECS Tuning | ||||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Ja S6F1A=Ja |
|||||||||
| 04 | Lenskopschroef met onderlegring | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Ja S6F1A=Nee |
|||||||||
| 04 | Lenskopschroef met onderlegring | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nee S6F1A=Ja |
|||||||||
| 04 | Lenskopschroef met onderlegring | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nee S6F1A=Nee |
|||||||||
| 04 | Lenskopschroef met onderlegring | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Nee S688A=Ja S6F1A=Ja |
|||||||||
| 04 | Lenskopschroef met onderlegring | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Nee S688A=Ja S6F1A=Nee |
|||||||||
| 04 | Lenskopschroef met onderlegring | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
| Voor voertuigen met HiFi-Luidsprekersystemen en Harman/Kardon Surround Sound systeem en Bowers & Wilkins High End Sound System |
S676A=Nee S688A=Nee S6F1A=Ja |
|||||||||
| 04 | Lenskopschroef met onderlegring | DELTA PT4X20 | 3 | 07149185673 | Shop at ECS Tuning | |||||
