Mobility System for BMW 3 Series G20 Sedan LCI 330e (2023)

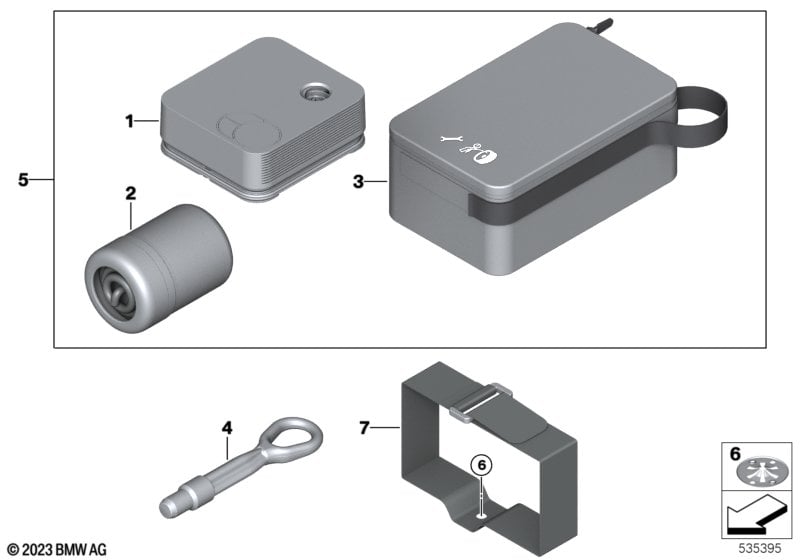

This Mobility System technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Bandenreparatieset |
S2VCA=Ja |
|||||||||
| 01 | Kompressor | 1 | 71106898012 | Shop at ECS Tuning | ||||||
| 02 | Fles met bandenafdichtmiddel | 350ML | 1 | 08/2023 | 71106898013 | Vervallen | Shop at ECS Tuning | |||
| 02 | Bandenvulfles | 350ML | 1 | 71105A9BCA1 | Shop at ECS Tuning | |||||
| 03 | Tas BMW Mobility System | 1 | 71106898016 | Shop at ECS Tuning | ||||||
| 04 | Sleep-oog | 1 | 72157953890 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Bandenreparatieset |
S2VCA=Ja |
|||||||||
| 05 | Mobility System Set | 1 | 71106898019 | Shop at ECS Tuning | ||||||
| 06 | Veermoer | 1 | 22326790073 | Shop at ECS Tuning | ||||||
| 07 | Klittenband | 1 | 71106884814 | Shop at ECS Tuning | ||||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
