Reparatieset steunlager for BMW 5 Series E61 530xd (2007)

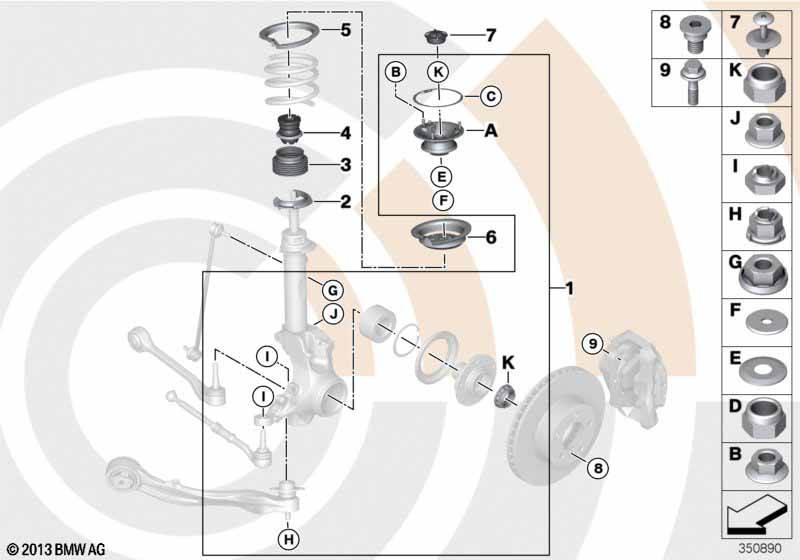

This Reparatieset steunlager technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! Bespaart tijd en logistiek- en verwerkingsskosten! Een klik en klaar! Verhoogt de kwaliteit van reparaties! |
||||||||||
| 01 | Reparatieset steunlager | VALUE PARTS | 2 | 10/2008 | 31352348003 | Shop at ECS Tuning | ||||
| Reparatiehandleiding raadplegen. | ||||||||||
| 02 | Onderlaag voor veren beneden | 2 | 31336764372 | $1.85 | Shop at ECS Tuning | |||||
| 03 | Beschermbuis | 2 | 31331094749 | $3.76 | Shop at ECS Tuning | |||||
| 04 | Extra demper vóór | 2 | 31306774699 | $21.35 | Shop at ECS Tuning | |||||
| 05 | Onderlaag voor veren boven | 2 | 31331091867 | $3.73 | Shop at ECS Tuning | |||||
| 06 | Veerschotel boven met afstandsring | 2 | 31326769667 | $10.63 | Shop at ECS Tuning | |||||
| 07 | Afdekkap | D=32MM | 2 | 31311139453 | $1.48 | Shop at ECS Tuning | ||||
| 08 | Reskantbout binnen | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 09 | Zeskantschroef met flens | M12X1,5X41 ZNS3 | 4 | 11/2005 | 34116797579 | Shop at ECS Tuning | ||||
