K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Differential-housing/housing cover

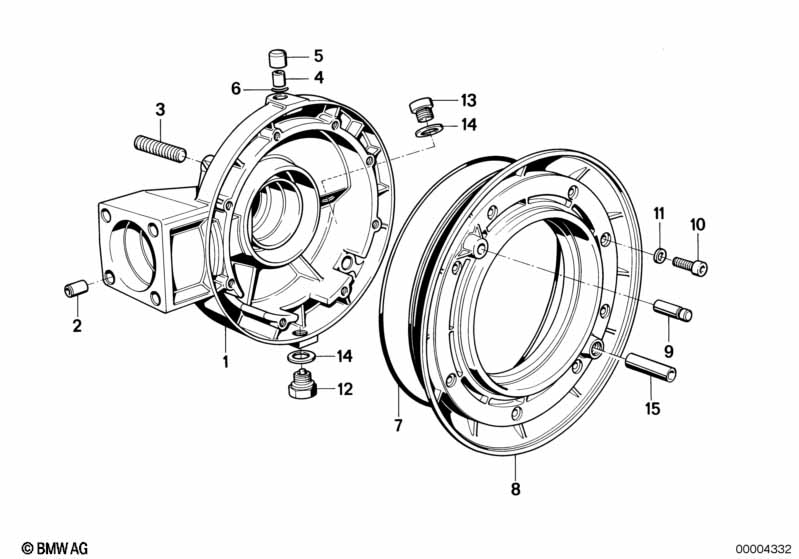

Differential-housing/housing cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear drive housing 1 07/1989 33111454095 +core
02 Dowel 12X15MM 2 07/1989 33111241260 $3.68
03 Stud bolt M12X60 1 07/1989 07129908096 $2.28
04 Sleeve 1 07/1989 23111451548 $2.71
05 Cap 1 07/1989 33111451988 $1.19
06 O-ring 1 07/1989 33111454606 $1.32
07 O-ring 171,1X2,62 1 07/1989 33111241257 $8.15
08 Housing cover 1 07/1989 33111450794 ENDED, +core
09 Pin 1 07/1989 33111241620
10 Fillister-head screw M8X35 8 07/1989 07119920059 $0.96
11 Washer 8,4 8 07/1989 07119931684 $0.40
12 Screw plug, magnetic M14X1,5 1 07/1989 11131744329 $11.30
13 Screw plug M14X1,5-ZNS 1 07/1989 33111451349 $4.07
14 Gasket ring A14X18-AL 2 07/1989 07119963200 $0.38
15 Pipe D=15,8 L=89,5MM 1 07/1989 33111451169 $9.70
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
