K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Set of locks

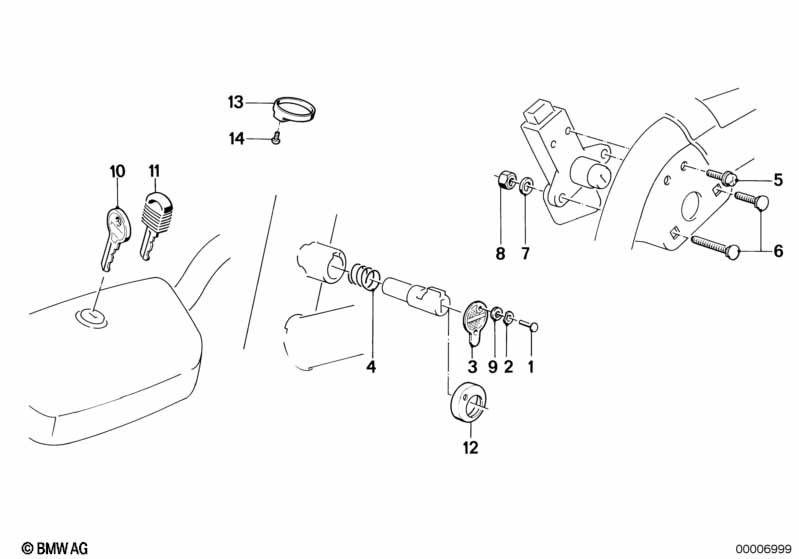

Set of locks
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Notched nail 3X9 1 51251242647 $1.09
02 Wave washer A3 1 07119932009 $0.55
03 Cover 1 51251453158 $4.28
04 Compression spring 1 32329016104 $0.91
05 Screw 2 08/1990 51251453383 $0.58
06 Saucer-head screw M5X30 1 08/1990 07119910418 $2.80
06 Saucer-head screw M5X16 1 07119910417 $1.93
07 Washer A5,3-140 HV-ZNS 2 12/1996 07119931029 $0.40 ENDED
07 Washer 10X5,3X1-200 HV 2 07119904206
07 Washer 5,3-140 HV-ZNS 2 07119936439 $0.40
08 Hex nut M5 ZNS 3 2 07119964653 $0.38 ENDED
08 Hex nut M5 2 07119905710 $2.83
10 Key (blank) X 51251233554 $6.89
10 Standard key (code) X 51251233898 $15.57
11 Ignition key, folding (code) X 51251453645 $43.86
11 Key (blank) X 51251453659 $12.96
12 Ring cover X 51251453521 $1.10 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
