K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Windshield

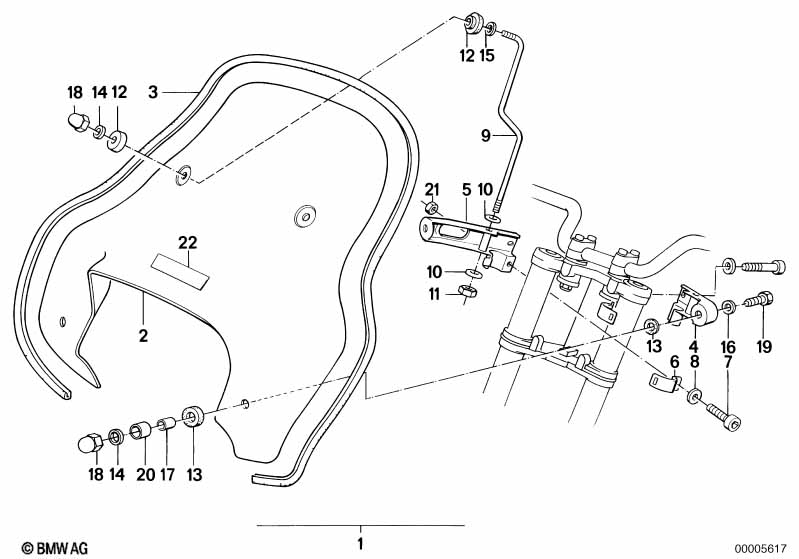

Windshield
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Set windshield with fastening 760MM 1 46632300116 $539.94 ENDED, +core
02 Windshield 1 46632303245 $368.30 +core
03 Edge protection 1850MM 1 46632303032 $12.71
04 Bracket left 1 46632300113 $90.41 ENDED
05 Bracket right 1 46632300114 $90.41
06 Clamp 2 46632300135 $2.99
07 Fillister-head screw M6X16-ZNS 2 07119901438 $0.60 ENDED
07 ISA screw M6X16-8.8-ZNNIV 2 07129905536 $0.64
08 Washer A6,4-ZNNIV SI 2 07119904202
09 Rod 2 46632315225 $94.22
EXCHANGEABLE IN PAIRS ONLY
10 Washer A8,4-ZNS 4 07119931019 $0.40
11 Self-locking hex nut M8-8-ZNS 2 11/1996 07129964675 $0.56 ENDED
11 Self-locking hex nut M8-8-ZNS3 2 07129904002 $0.18
12 Grommet 4 46631233619 $1.74 ENDED
13 Grommet 4 46632300375 $1.39
14 Washer 4 46632300371 $2.80
14 Washer 4 62211244072 $3.96
15 Washer 2 46632300376 $0.84
15 Washer A8,4-ZNS 2 08/1990 07119931019 $0.40
16 Washer 6,4 2 11/1996 07119936425 $0.09 ENDED
17 Bush 2 46632300373 $2.80
18 Cap nut M6 4 46632300370 $1.09
19 Hex bolt M6X20 2 07119913477 $0.18 ENDED
20 Bush 2 46632300372 $5.96
21 Self-locking hex nut M6 2 07129922705 $0.27
22 Label right 1 46631453085 $2.20 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
