Listwa progowa JCW pakietu aerodynam. for BMW MINI R56 One (2008)

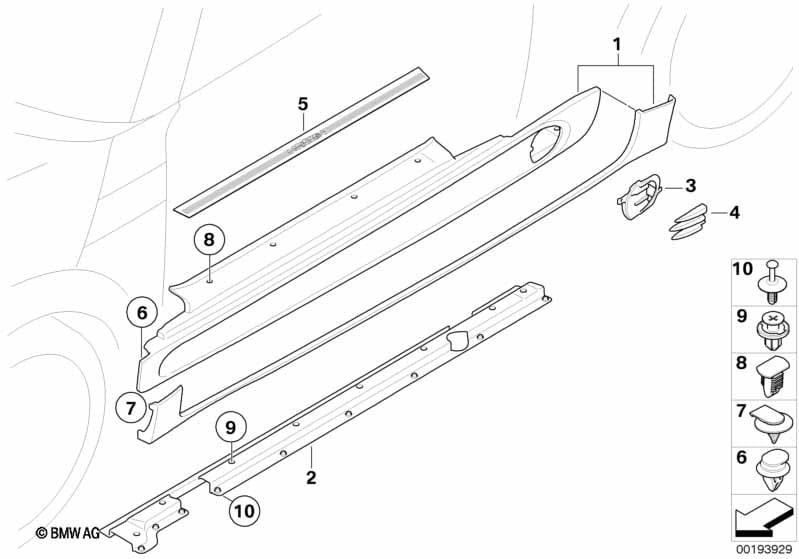

This Listwa progowa JCW pakietu aerodynam. technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Uwaga: Brak instrukcji montażu (EBA) w zestawie doposażeniowym. Aktualną instrukcję montażu należy wydrukować z elektronicznego katalogu części (ETK) i przekazać klientowi. Podzespoły, które nie są wymienione w instrukcji montażu, montuje się zgodnie z ISTA/AIR. |
|||||||||
| 01 | Próg lewy | 1 | 51712156417 | $263.95 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 01 | Próg prawy | 1 | 51712156418 | $263.95 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 02 | Adapter progu, lewy | 1 | 51710413259 | $29.50 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 02 | Adapter progu, prawy | 1 | 51710413260 | $29.25 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 03 | Element zabezp., wlot pow., le. | 1 | 51710414449 | $32.42 | +podst | Shop at ECS Tuning | ||||
| 03 | Element zabezp., wlot pow., pr. | 1 | 51710414452 | $25.50 | +podst | Shop at ECS Tuning | ||||
| 04 | Wkład wlotu pow., lewy | 1 | 51710413261 | $19.55 | +podst | Shop at ECS Tuning | ||||
| 04 | Wkład wlotu pow., prawy | 1 | 51710413262 | $19.55 | +podst | Shop at ECS Tuning | ||||
| 05 | Osłona progu | 2 | 51710421202 | $46.50 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Zaczep | SCHWARZ / BLACK | 10 | 07131480419 | $0.75 | Shop at ECS Tuning | ||||
| 07 | Zaczep | 2 | 07137073915 | $0.75 | Shop at ECS Tuning | |||||
| 08 | Zaczep | 10 | 51711496621 | $0.35 | Shop at ECS Tuning | |||||
| 09 | Nit rozprężny | 10 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 10 | Nit rozprężny | 10 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
