Doposażenie - kompas/pilot for BMW 5 Series E60 520i (2002)

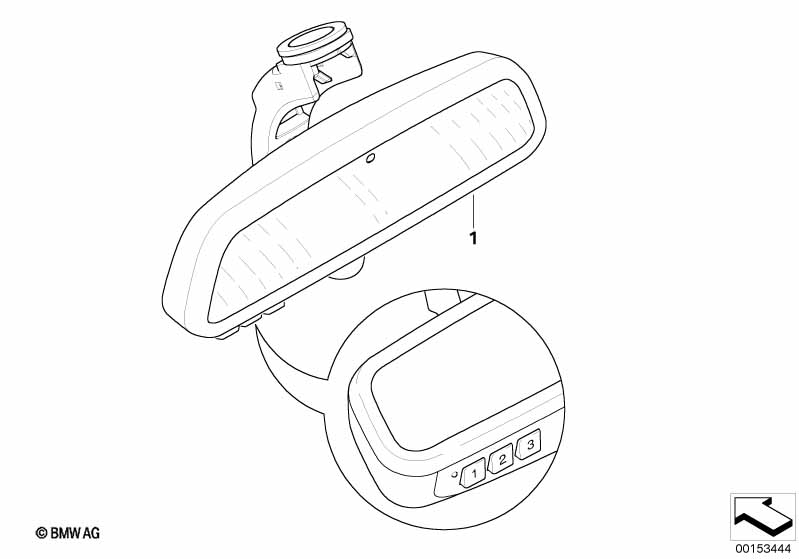

This Doposażenie - kompas/pilot technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Do tego doposażenia nie są dostępne dokumenty montażowe. Montaż powinien być przeprowadzany przez wykwalifikowany personel, najlepiej przez Dealera BMW. BMW nie ponosi odpowiedzialności za niewłaściwe działanie i uszkodzenia spowodowane niewłaściwym montażem. Czas montażu ok. 0,5 h, który w zależności od stanu i wyposażenia pojazdu może odbiegać od tej wartości. |
|||||||||
| 01 | Zintegrowana pilot uniwersalny | 1 | 01/2004 | 61310139355 | $424.95 | Zakończono | Shop at ECS Tuning | |||
| 01 | Wewn. lusterko wsteczne EC/DWA/GTOE | 434MHZ | 1 | 01/2004 | 51167153451 | $383.49 | Zakończono | Shop at ECS Tuning | ||
| 01 | Lusterko wewnętrzne EC / LED / GTO | 1 | 01/2004 | 51169134447 | $392.96 | Zakończono | Shop at ECS Tuning | |||
| 01 | Lusterko wewn. EC / LED / GTO / Kompas | 1 | 03/2007 | 51167148840 | $597.87 | Zakończono | Shop at ECS Tuning | |||
| 01 | Lusterko wewn. EC / LED / GTO / Kompas | 1 | 03/2007 | 51169151851 | $635.05 | Zakończono | Shop at ECS Tuning | |||
| 01 | Lusterko wewnętrzne EC / Kompas | 1 | 51167148837 | $318.95 | Zakończono | Shop at ECS Tuning | ||||
| 01 | Lusterko wewn. EC / LED / GTO / pilot | 868 MHZ | 1 | 51169134444 | $490.16 | Shop at ECS Tuning | ||||
| 01 | Lusterko wewnętrzne EC / LED / Kompas | 1 | 51169192333 | $666.73 | Shop at ECS Tuning | |||||
| 01 | Lusterko wewn. EC / LED / GTO / Kompas | 1 | 51169192334 | Shop at ECS Tuning | ||||||
Uwagi
- Zakończono = część wycofana z produkcji.
