Skrzynka dachowa for BMW 7 Series E65 745i (2003)

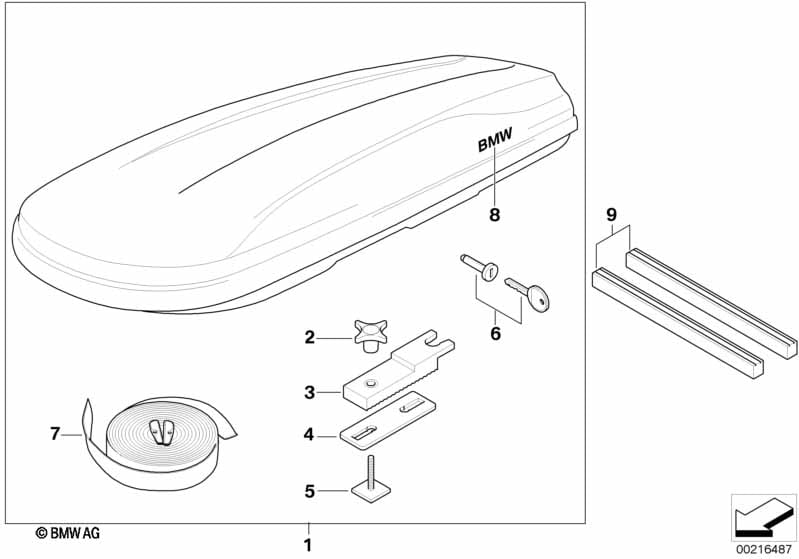

This Skrzynka dachowa technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Skrzynka dachowa 450 | SILBER / 450L | 1 | 02/2006 | 82730141917 | $832.00 | Zakończono | Shop at ECS Tuning | ||
| 01 | Skrzynka dachowa 450 | SCHWARZ / 450L | 1 | 02/2006 | 82730300276 | $832.00 | Zakończono | Shop at ECS Tuning | ||
| 02 | Śruba zaciskowa | DACHBOX | 4 | 82730300926 | $7.50 | Shop at ECS Tuning | ||||
| 03 | Płyta zaciskowa | DACHBOX | 4 | 82730300927 | $6.75 | Shop at ECS Tuning | ||||
| 04 | Podkładka | DACHBOX | 2 | 82730300928 | $0.50 | Shop at ECS Tuning | ||||
| 05 | Kamień jarzma | DACHBOX | 4 | 82730300929 | $2.50 | Shop at ECS Tuning | ||||
| 06 | Zamek wraz z kluczykiem | 1 | 82730300930 | $19.00 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Pas mocujący | DACHBOX | 2 | 82730300931 | $17.19 | Shop at ECS Tuning | ||||
| 08 | Napis | DACHBOX | 2 | 82730300932 | $16.00 | Shop at ECS Tuning | ||||
| 09 | Nakładki na narty | FÜR DACHBOX 320 | 1 | 82732159030 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
