Uchwyt na rower turystyczny for BMW 7 Series E65 745i (2003)

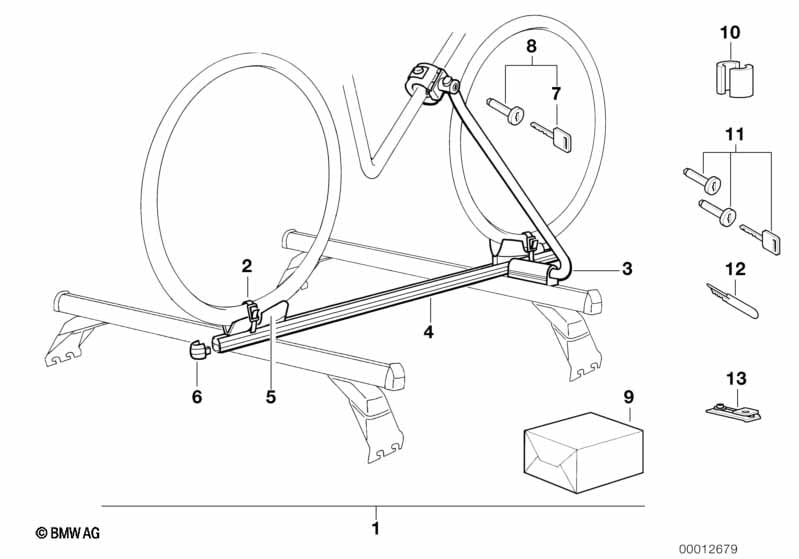

This Uchwyt na rower turystyczny technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uchwyt na rower turystyczny | 1 | 12/2009 | 82720137716 | $140.95 | Zakończono | Shop at ECS Tuning | |||
| 01 | Uchwyt na rower turystyczny | 1 | 82712166924 | Zakończono | Shop at ECS Tuning | |||||
| 02 | Pasek do uchwytu na rower | 1 STÜCK | 2 | 82729402961 | $2.50 | Zakończono | Shop at ECS Tuning | |||
| 03 | Uchwyt | 1 STÜCK | 1 | 82729402962 | $64.00 | Zakończono | Shop at ECS Tuning | |||
| 04 | Poprzeczka | 1 STÜCK | 1 | 82729402963 | $32.75 | Zakończono | Shop at ECS Tuning | |||
| 05 | Nakładka koła | 1 STÜCK | 2 | 82729402964 | $4.25 | Zakończono | Shop at ECS Tuning | |||
| 05 | Nakładka koła ze śrubą radełkowaną | 2 | 82799415493 | $7.75 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Pokrywka | 2 | 82729402965 | $1.50 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Klucz (kodowany) | 1 | 82129413171 | $9.50 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 08 | Wkład zamka z kluczem | 1 STÜCK | 1 | 82799404603 | $25.25 | Zakończono | Shop at ECS Tuning | |||
| 09 | Zestaw montażowy | 1 | 82729402966 | $16.75 | Zakończono | Shop at ECS Tuning | ||||
| zawiera wkładki gumowe grube haki zaciskowe kamień jarzma klucz imbusowy pokrywkę zamka |
||||||||||
| 10 | Wkładki gumowe cienkie | 1 | 82129401403 | $10.50 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Komplet zamków | 1 | 82799405805 | $32.92 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Narzędzie specjalne | 1 | 82799405806 | $9.75 | Zakończono | Shop at ECS Tuning | ||||
| 12 | Narzędzie specjalne | 1 | 82799405806 | $9.75 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
