Mocowanie nart komfortowe for BMW 7 Series E65 745i (2003)

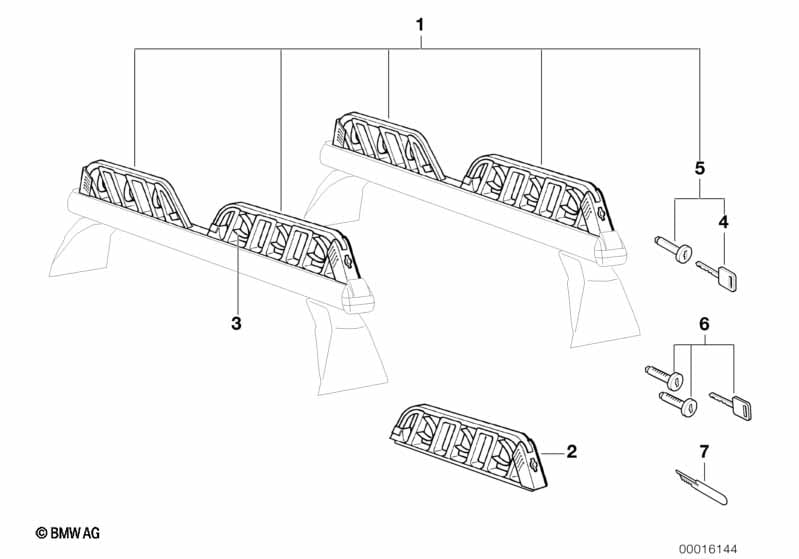

This Mocowanie nart komfortowe technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uchwyt do nart | 1 | 82729408998 | $172.95 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 02 | Uchwyt nart | 4 | 82799410995 | $64.50 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 03 | Pierścień plastikowy ze sprężyną | 12 | 82799404119 | Zakończono | Shop at ECS Tuning | |||||
| 04 | Klucz (kodowany) | 1 | 82129413171 | $9.50 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 05 | Wkład zamka z kluczem | 1 STÜCK | 4 | 82799404603 | $25.25 | Zakończono | Shop at ECS Tuning | |||
| 06 | Komplet zamków | 1 | 82799405805 | $32.92 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Narzędzie specjalne | 1 | 82799405806 | $9.75 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Mocowanie nart komfortowe?
- This technical diagram illustrates the Mocowanie nart komfortowe within the Doposażenie / Zmiana / Wyposażenie dod. group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Uchwyt do nart (Part #82729408998).
- Which models use the hardware listed in this Mocowanie nart komfortowe?
- The hardware and components featured in the Mocowanie nart komfortowe are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Uchwyt do nart (82729408998) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mocowanie nart komfortowe assembly?
- Each item in the Mocowanie nart komfortowe corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Uchwyt do nart by locating its position on the schematic, which then links to the official BMW part number 82729408998 for the Doposażenie / Zmiana / Wyposażenie dod. section.
