Mocowanie nart standard., do 6 par nart for BMW 7 Series E65 745i (2003)

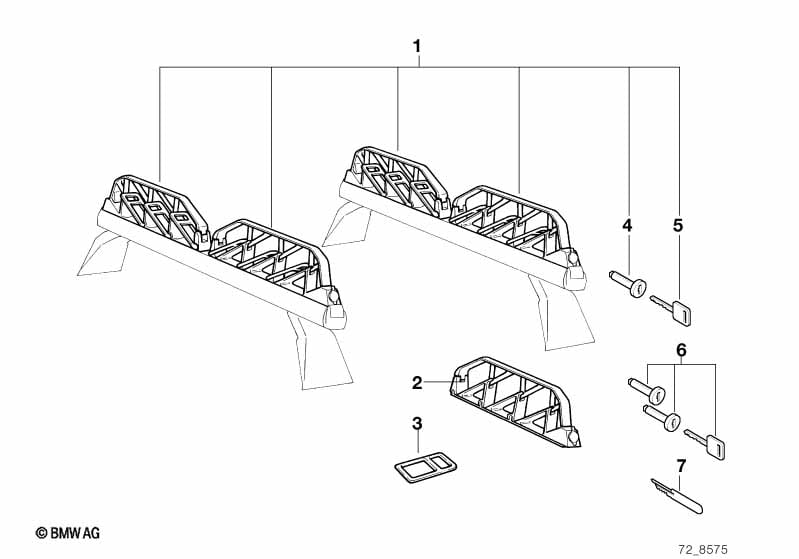

This Mocowanie nart standard., do 6 par nart technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mocowanie nart standardowe | 1 | 82729404370 | $98.50 | Zakończono | Shop at ECS Tuning | ||||
| nie pasuje do | ||||||||||
| -- | Wspornik dachowy | E39 | X | 82710142219 | $200.95 | Zakończono, +podst | Shop at ECS Tuning | |||
| -- | Wspornik dachowy | E46/4 | X | 82710142220 | $206.95 | Zakończono, +podst | Shop at ECS Tuning | |||
| -- | Wspornik dachowy | E46/2 | X | 82710142221 | $206.95 | Zakończono, +podst | Shop at ECS Tuning | |||
| -- | Wspornik relingów | E46/3 | X | 82710144371 | $206.95 | Zakończono, +podst | Shop at ECS Tuning | |||
| -- | Poprzeczki dachowe bagażnika | E46/C | X | 82710144378 | $246.95 | Zakończono, +podst | Shop at ECS Tuning | |||
| -- | Wspornik dachowy | E39/2 | X | 82710144379 | $200.95 | Zakończono, +podst | Shop at ECS Tuning | |||
| -- | Wspornik dachowy | E46/5 | X | 82710144383 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 02 | Uchwyt nart | 4 | 82799404573 | $33.50 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Taśma gumowa do moc. nart | 12 | 82799404574 | $3.00 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Wkład zamka z kluczem | 1 STÜCK | 4 | 82799404603 | $25.25 | Zakończono | Shop at ECS Tuning | |||
| 05 | Klucz (kodowany) | 1 | 82129413171 | $9.50 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 06 | Komplet zamków | 1 | 82799405805 | $32.92 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Narzędzie specjalne | 1 | 82799405806 | $9.75 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Narzędzie specjalne | 1 | 82799405806 | $9.75 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Mocowanie nart standard., do 6 par nart?
- This technical diagram illustrates the Mocowanie nart standard., do 6 par nart within the Doposażenie / Zmiana / Wyposażenie dod. group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Mocowanie nart standardowe (Part #82729404370).
- Which models use the hardware listed in this Mocowanie nart standard., do 6 par nart?
- The hardware and components featured in the Mocowanie nart standard., do 6 par nart are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Mocowanie nart standardowe (82729404370) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mocowanie nart standard., do 6 par nart assembly?
- Each item in the Mocowanie nart standard., do 6 par nart corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Mocowanie nart standardowe by locating its position on the schematic, which then links to the official BMW part number 82729404370 for the Doposażenie / Zmiana / Wyposażenie dod. section.
