Napęd paskiem klinowym-amortyzator for BMW 7 Series E23 745i (1983)

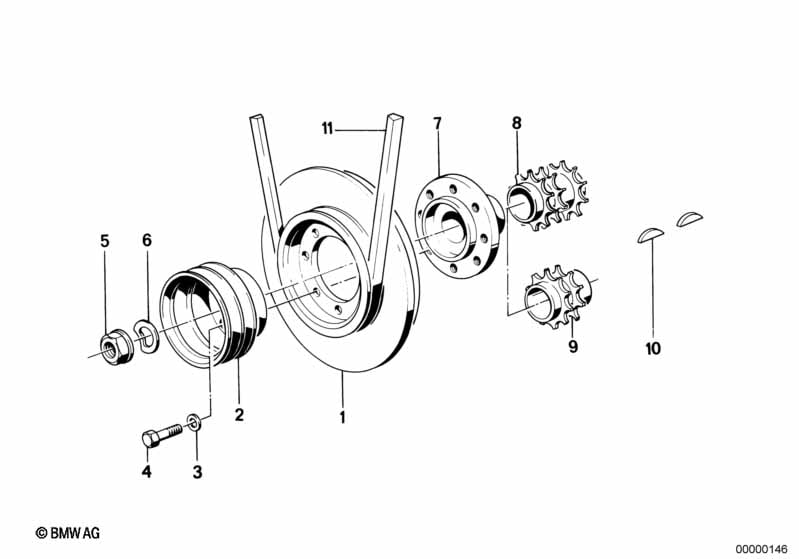

This Napęd paskiem klinowym-amortyzator technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tłumik drgań | 1 | 11231269456 | $425.81 | Shop at ECS Tuning | |||||
| 02 | Koło pasowe | 124MM | 1 | 11211258274 | $60.68 | Shop at ECS Tuning | ||||
| 03 | Podkładka | A8,4 | 8 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Śruba z podkładką | M8X16-Z1 | 8 | 07119913976 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Nakrętka z kołnierzem | 1 | 11231308128 | $8.08 | Shop at ECS Tuning | |||||
| 06 | Podkładka sprężysta | B24 | 1 | 07119932190 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Piasta | 1 | 11231263915 | $179.99 | Shop at ECS Tuning | |||||
| 09 | Koło łańcuchowe | 1 | 11/1978 | 11211265011 | $66.37 | Shop at ECS Tuning | ||||
| 10 | Sprężyna krążkowa | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Pasek klinowy | 12,5X1055 | 1 | 11231711090 | $11.16 | Shop at ECS Tuning | ||||
| 11 | Pasek klinowy | 12,5X1055 | 1 | 11231711090 | $11.16 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 745i Napęd paskiem klinowym-amortyzator?
- This technical diagram illustrates the Napęd paskiem klinowym-amortyzator within the Silnik group for the 7 Series E23 745i produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Tłumik drgań (Part #11231269456).
- Which models use the hardware listed in this Napęd paskiem klinowym-amortyzator?
- The hardware and components featured in the Napęd paskiem klinowym-amortyzator are specific to the 7 Series E23 745i produced during 1983. These technical specifications ensure that parts like the Tłumik drgań (11231269456) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Napęd paskiem klinowym-amortyzator assembly?
- Each item in the Napęd paskiem klinowym-amortyzator corresponds to the numbered list below the illustration. For the 7 Series E23 745i, you can identify the Tłumik drgań by locating its position on the schematic, which then links to the official BMW part number 11231269456 for the Silnik section.
