Sterowanie podciśnieniowe-AGR for BMW 5 Series E12 518

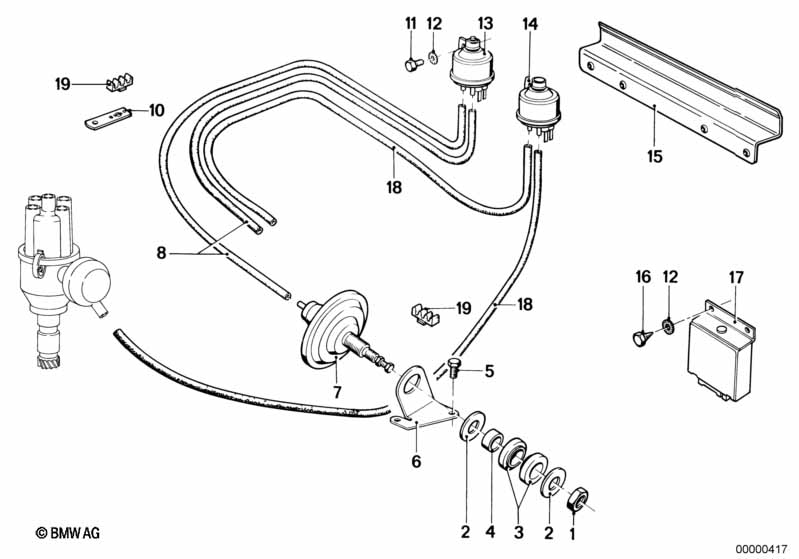

This Sterowanie podciśnieniowe-AGR technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Wersja szwedzka |
=Tak |
|||||||||
| 01 | Nakrętka sześciokątna | M12X1 | 1 | 06/1976 | 11512077715 | $0.58 | Zakończono | Shop at ECS Tuning | ||
| 01 | Nakrętka sześciokątna | M12X1 | 1 | 06/1976 | 11512077715 | $0.58 | Zakończono | Shop at ECS Tuning | ||
| 02 | Podkładka | 13X30X4MM | 2 | 06/1976 | 33171125439 | $0.73 | Shop at ECS Tuning | |||
| 02 | Podkładka | 13X30X4MM | 2 | 06/1976 | 33171125439 | $0.73 | Shop at ECS Tuning | |||
| 03 | Tulejka | 2 | 06/1976 | 11731259161 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Tulejka | 2 | 06/1976 | 11731259161 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Śruba sześciokątna | M6X12-8.8-ZNNIV | 2 | 06/1976 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 05 | Śruba sześciokątna | M6X12-8.8-ZNNIV | 2 | 06/1976 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 07 | Element podciśnieniowy | 1 | 06/1976 | 13211252253 | $89.60 | Shop at ECS Tuning | ||||
| 07 | Element podciśnieniowy | 1 | 06/1976 | 13211252253 | $89.60 | Shop at ECS Tuning | ||||
| 08 | Przewód elast. podciśnien. biały | 3,3X1,8 | X | 06/1976 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 08 | Przewód elast. podciśnien. biały | 3,3X1,8 | X | 06/1976 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 09 | Zacisk | 1 | 06/1976 | 11731259204 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Zacisk | 1 | 06/1976 | 11731259204 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Śruba sześciokątna | M5X10 | 2 | 06/1976 | 07119913218 | $0.12 | Shop at ECS Tuning | |||
| 11 | Śruba sześciokątna | M5X10 | 2 | 06/1976 | 07119913218 | $0.12 | Shop at ECS Tuning | |||
| 12 | Podkładka zębata | A5,1 | 2 | 06/1976 | 07119936107 | $0.18 | Shop at ECS Tuning | |||
| 12 | Podkładka zębata | A5,1 | 2 | 06/1976 | 07119936107 | $0.18 | Shop at ECS Tuning | |||
| 13 | Elektr.zawór przełącz. czarny | 1 | 06/1976 | 11741265859 | $84.16 | Zakończono | Shop at ECS Tuning | |||
| 13 | Elektr.zawór przełącz. czarny | 1 | 06/1976 | 11741265859 | $84.16 | Zakończono | Shop at ECS Tuning | |||
| 14 | Elektr.zawór przełącz. biały | 1 | 06/1976 | 11741265860 | $67.10 | Zakończono | Shop at ECS Tuning | |||
| 14 | Elektr.zawór przełącz. biały | 1 | 06/1976 | 11741265860 | $67.10 | Zakończono | Shop at ECS Tuning | |||
| 15 | Kątownik | 1 | 06/1976 | 51711849228 | Zakończono | Shop at ECS Tuning | ||||
| 15 | Kątownik | 1 | 06/1976 | 51711849228 | Zakończono | Shop at ECS Tuning | ||||
| 16 | Blachowkręt | ST4,8X9,5-C-H-Z | 2 | 06/1976 | 07119901200 | $0.17 | Shop at ECS Tuning | |||
| 16 | Blachowkręt | ST4,8X9,5-C-H-Z | 2 | 06/1976 | 07119901200 | $0.17 | Shop at ECS Tuning | |||
| 17 | Przekaźnik przeł. prędkości obrotowej | 1 | 06/1976 | 61311361488 | Zakończono | Shop at ECS Tuning | ||||
| 17 | Przekaźnik przeł. prędkości obrotowej | 1 | 06/1976 | 61311361488 | Zakończono | Shop at ECS Tuning | ||||
| 18 | Przewód elast. podciśnien. czarny | 3,5X1,8 | X | 06/1976 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 18 | Przewód elast. podciśnien. czarny | 3,5X1,8 | X | 06/1976 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 19 | Uchwyt | 3 | 06/1976 | 12121353672 | $2.54 | Shop at ECS Tuning | ||||
| 19 | Uchwyt | 3 | 06/1976 | 12121353672 | $2.54 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 Sterowanie podciśnieniowe-AGR?
- This technical diagram illustrates the Sterowanie podciśnieniowe-AGR within the Silnik group for the 5 Series E12 518. It provides a detailed exploded view of the components, identifying key parts such as the Nakrętka sześciokątna (Part #11512077715).
- Which models use the hardware listed in this Sterowanie podciśnieniowe-AGR?
- The hardware and components featured in the Sterowanie podciśnieniowe-AGR are specific to the 5 Series E12 518. These technical specifications ensure that parts like the Nakrętka sześciokątna (11512077715) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sterowanie podciśnieniowe-AGR assembly?
- Each item in the Sterowanie podciśnieniowe-AGR corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the Nakrętka sześciokątna by locating its position on the schematic, which then links to the official BMW part number 11512077715 for the Silnik section.
