Dmuchawa chłodzenia turbosprężarki for BMW 7 Series E23 745i

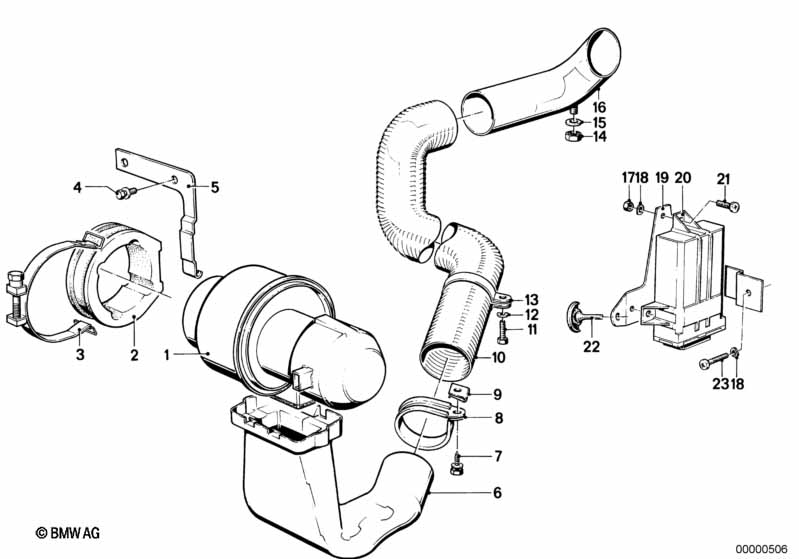

This Dmuchawa chłodzenia turbosprężarki technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dmuchawa | 1 | 11651277183 | $173.46 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Pierścień tłumiący | 1 | 11651277204 | $8.86 | Shop at ECS Tuning | |||||
| 03 | Obejma | 1 | 11651277821 | Zakończono | Shop at ECS Tuning | |||||
| 04 | Śruba z podkładką | M6X10-Z1 | 2 | 07119915057 | $3.05 | Shop at ECS Tuning | ||||
| 05 | Uchwyt | 1 | 11651277820 | $40.73 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Króciec ssący | 1 | 11651277816 | $21.93 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Blachowkręt | ST6,3X16-C-Z1 | 1 | 07119916965 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Obejma rurowa | D=45MM | 1 | 64531394285 | $1.56 | Shop at ECS Tuning | ||||
| 09 | Nakrętka | B6,3-6 | 1 | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 10 | Przewód elastyczny | 1 | 11651277658 | $21.24 | Shop at ECS Tuning | |||||
| 11 | Śruba sześciokątna | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Podkładka sprężysta czarna | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Obejma rurowa | 1 | 11651277711 | $1.53 | Zakończono | Shop at ECS Tuning | ||||
| pasuje tylko do sprężarki łopatkowej | ||||||||||
| 13 | Obejma rurowa | D=50MM | 1 | 64531385122 | $1.41 | Zakończono | Shop at ECS Tuning | |||
| 14 | Nakrętka sześciokątna | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Podkładka | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 16 | Przewód rurowy | 1 | 11651277657 | $18.94 | Zakończono | Shop at ECS Tuning | ||||
| 17 | Nakrętka sześciokątna | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 18 | Podkładka sprężysta | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Uchwyt | 1 | 11651277224 | $9.71 | Zakończono | Shop at ECS Tuning | ||||
| 20 | Temperaturowy włącznik czasowy | 1 | 11651277227 | $232.64 | Shop at ECS Tuning | |||||
| 21 | Śruba soczewkowa | M5X16 | 3 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 22 | Odbojnik | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 23 | Wkręt samogwintujący | ST4,2X25 | 1 | 07119907796 | $0.18 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
