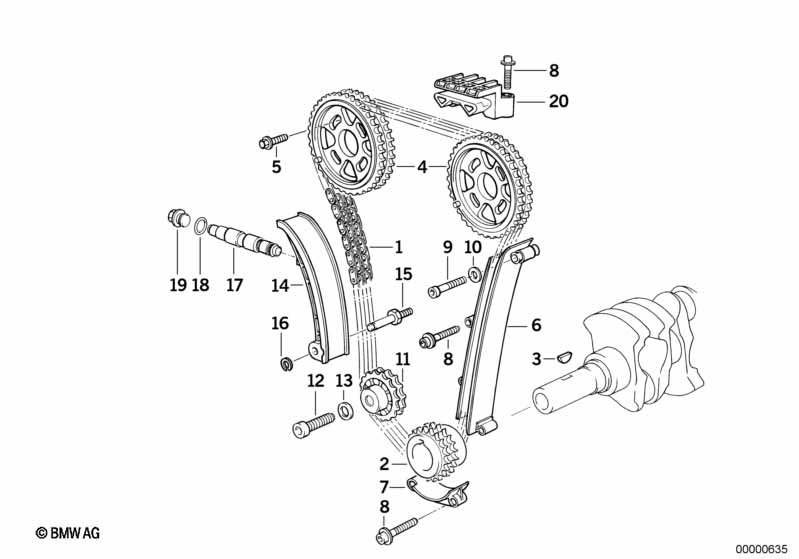

Mechanizm ster.-łańcuch sterujący for BMW 3 Series E36 318is (1992)
This Mechanizm ster.-łańcuch sterujący technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Łańcuch rozdządu | 1 | 09/1993 | 11311739480 | Shop at ECS Tuning | |||||
| 02 | Koło łańcuchowe | 1 | 09/1993 | 11211247338 | $62.77 | Shop at ECS Tuning | ||||
| 03 | Sprężyna krążkowa | 5X6.5 | 1 | 09/1993 | 07119951480 | $0.88 | Shop at ECS Tuning | |||
| 04 | Koło łańcuchowe | 2 | 09/1993 | 11311727446 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Śruba z podkładką | M7X20-U1 | 8 | 09/1993 | 07119906642 | Shop at ECS Tuning | ||||
| 06 | Szyna prowadząca | 1 | 09/1993 | 11311247483 | Shop at ECS Tuning | |||||
| 07 | Prowadnica | 1 | 09/1993 | 11311721419 | $44.15 | Shop at ECS Tuning | ||||
| 08 | Śruba z łbem walcowym | M6X35-Z1 | 7 | 09/1993 | 07119919824 | Shop at ECS Tuning | ||||
| 09 | Śruba z łbem walcowym | M6X45-8.8-ZNS | 1 | 09/1993 | 07119920123 | $0.60 | Shop at ECS Tuning | |||
| 11 | Kółko zwrotne | 1 | 09/1993 | 11311727569 | $137.97 | Shop at ECS Tuning | ||||
| 12 | Śruba z łbem walcowym | M8X40-8.8-ZNS3 | 1 | 09/1993 | 07119902984 | $1.93 | Shop at ECS Tuning | |||
| 13 | Podkładka | 8,4X16X1,6-ZNNV | 1 | 09/1993 | 07119907030 | Shop at ECS Tuning | ||||
| 14 | Szyna napinająca | 1 | 09/1993 | 11311727342 | $95.44 | Shop at ECS Tuning | ||||
| 15 | Sworzeń łożyskowy | 1 | 09/1993 | 11311721322 | $20.83 | Shop at ECS Tuning | ||||
| 16 | Podkładka zabezpieczająca | 8,0 | 1 | 09/1993 | 07119932863 | $0.11 | Shop at ECS Tuning | |||
| 17 | Napinacz łańcucha | 1 | 09/1993 | 11311743187 | $61.43 | Shop at ECS Tuning | ||||
| 18 | Pierścień uszczelniający | A22X27-AL | 1 | 09/1993 | 07119963355 | $0.36 | Shop at ECS Tuning | |||
| 19 | Śruba zamykająca | 1 | 09/1993 | 11311721579 | $3.15 | Shop at ECS Tuning | ||||
| 20 | Szyna ślizgowa | 1 | 09/1993 | 11311721641 | $16.11 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
