Blok silnika for BMW 5 Series E39 525tds (1997)

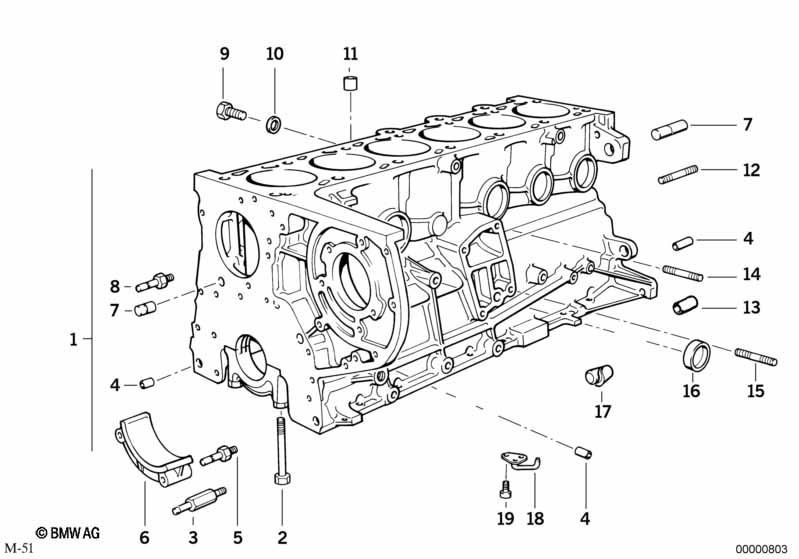

This Blok silnika technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blok silnika z tłokami | 1 | 11112245750 | $3507.50 | Shop at ECS Tuning | |||||
| 02 | Śruba sześciokątna | M10X80 | 14 | 11112244286 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Sworzeń łożyskowy | 1 | 13512245370 | Shop at ECS Tuning | ||||||
| 04 | Tulejka pasowana | D=10,5MM | 5 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Sworzeń łożyskowy | 2 | 11112245726 | Shop at ECS Tuning | ||||||
| 06 | Obejma | 1 | 11112245727 | Shop at ECS Tuning | ||||||
| 07 | Zaślepka | D=12,0MM | 2 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Sworzeń łożyskowy | 1 | 13512245368 | Shop at ECS Tuning | ||||||
| 09 | Śruba zamykająca | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 10 | Pierścień uszczelniający | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Tulejka pasowana | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Śruba dwustronna | M8X37-ZN | 2 | 07129900480 | Shop at ECS Tuning | |||||
| 13 | Tulejka pasowana | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 14 | Śruba dwustronna | M8X30-ZNS3 | 2 | 07129906148 | $0.80 | Shop at ECS Tuning | ||||
| 15 | Śruba dwustronna | M8X45-8.8-ZNS3 | 2 | 07129903965 | $2.25 | Shop at ECS Tuning | ||||
| 16 | Zaślepka | D=45MM | 7 | 11111714712 | $3.32 | Shop at ECS Tuning | ||||
| 17 | Zaślepka | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||
| 18 | Dysza wtrysku oleju | 6 | 11422243332 | $14.97 | Shop at ECS Tuning | |||||
| 19 | Śruba ISA | M6X10-8.8-ZNS3 | 6 | 03/2000 | 07129903804 | $1.93 | Shop at ECS Tuning |
