Elementy dodatkowe głowicy cylindrów for BMW 5 Series E39 525tds (1997)

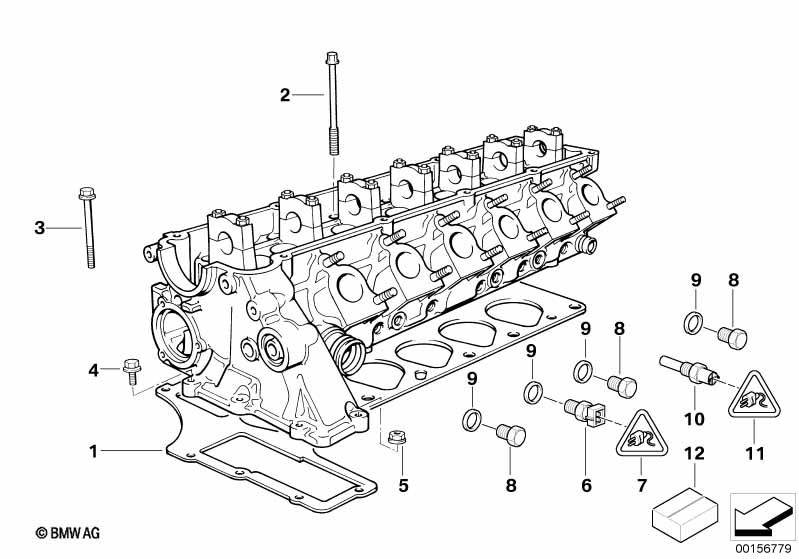

This Elementy dodatkowe głowicy cylindrów technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uszczelka głow. silnika bezazbestowa | 1,87MM 3-LOCH | 1 | 11122245427 | $135.79 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| 01 | Uszczelka głow. silnika bezazbestowa | 1,87MM 3-LOCH | 1 | 11122245427 | $135.79 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Kpl. śrub do głowicy silnika | 1 | 11129067790 | $75.52 | Shop at ECS Tuning | |||||
| 02 | Kpl. śrub do głowicy silnika | 1 | 11129067790 | $75.52 | Shop at ECS Tuning | |||||
| 03 | Śruba z podkładką | M6X100-Z1 | 2 | 11122245529 | Shop at ECS Tuning | |||||
| 04 | Śruba z podkładką | M6X30-ZNNIV SI | 3 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 05 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| Dla samochodów z Klimatyzacja automatyczna |
S534A=Tak |
|||||||||
| 06 | Czujnik/stycznik temperaturowy | 101 CEL | 1 | 12632243815 | Shop at ECS Tuning | |||||
| Dla samochodów z Żaluzja chłodnicy |
=Tak |
|||||||||
| 06 | Czujnik/stycznik temperaturowy | 86 CEL | 1 | 12632243816 | Shop at ECS Tuning | |||||
| 08 | Śruba zamykająca | AM14X1,5 | 3 | 07119909704 | Shop at ECS Tuning | |||||
| 09 | Pierścień uszczelniający | A14X18-CU | 4 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Czujnik temeratury podwójny | 1 | 13621703993 | $21.80 | +podst | Shop at ECS Tuning | ||||
| 11 | Obudowa wtyczki | 4 POL. | 1 | 12521703571 | $3.07 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Konektor | 0,5- 1,0 MM² | 4 | 61130007657 | $4.07 | Shop at ECS Tuning | ||||
| -- | Uszczelnienie przewodu pojedynczego | 0,75-1,0MM² | 4 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
| 12 | Zest. uszcz. gł. silnika, bezazbest. | 1 | 11129070622 | $135.70 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Uszcz. z osłoną term., bezazbestowa | 1 | 11622247024 | $27.16 | Shop at ECS Tuning | |||||
| Zestaw uszczelek bez uszcz. głowicy cyl. | ||||||||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
