Blok silnika for BMW 3 Series E46 320d (1999)

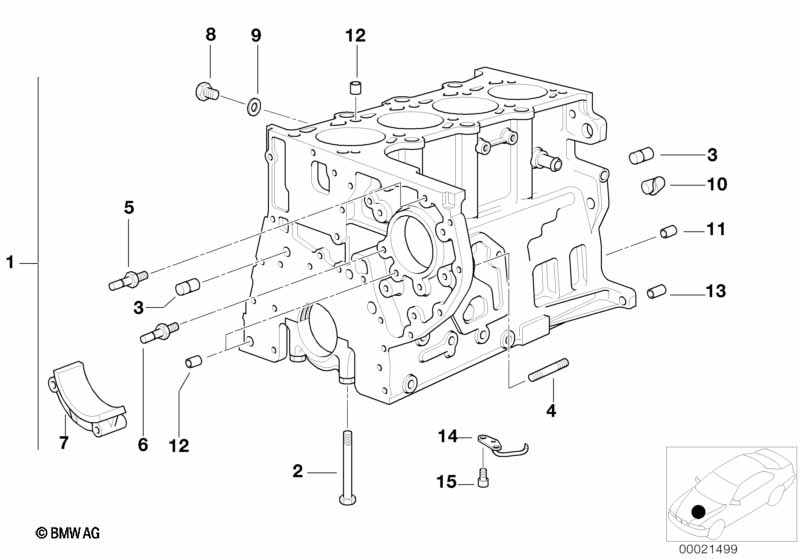

This Blok silnika technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blok silnika z tłokami | 1 | 11112247509 | $2689.56 | +podst | Shop at ECS Tuning | ||||
| Konieczne do naprawy | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | Shop at ECS Tuning | ||||
| 02 | Śruba sześciokątna | M10X80 | 10 | 11112244286 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Zaślepka | D=12,0MM | 4 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 04 | Śruba dwustronna | M8X42 | 4 | 11117791452 | $1.08 | Shop at ECS Tuning | ||||
| 05 | Sworzeń łożyskowy | 1 | 11112247197 | $5.14 | Shop at ECS Tuning | |||||
| 06 | Sworzeń łożyskowy | 2 | 11112245726 | Shop at ECS Tuning | ||||||
| 07 | Obejma | 1 | 11112246610 | Shop at ECS Tuning | ||||||
| 08 | Śruba zamykająca | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 09 | Pierścień uszczelniający | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Zaślepka | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||
| 11 | Tulejka pasowana | D=10,5MM | 5 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 12 | Tulejka pasowana | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 13 | Tulejka pasowana | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 14 | Dysza wtrysku oleju | 4 | 11422246953 | Shop at ECS Tuning | ||||||
| 15 | Śruba ISA | M6X10-8.8-ZNS3 | 8 | 07129903804 | $1.93 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
