Obudowa skrzyni łańcuchowej, dolna for BMW 3 Series E46 320d (1999)

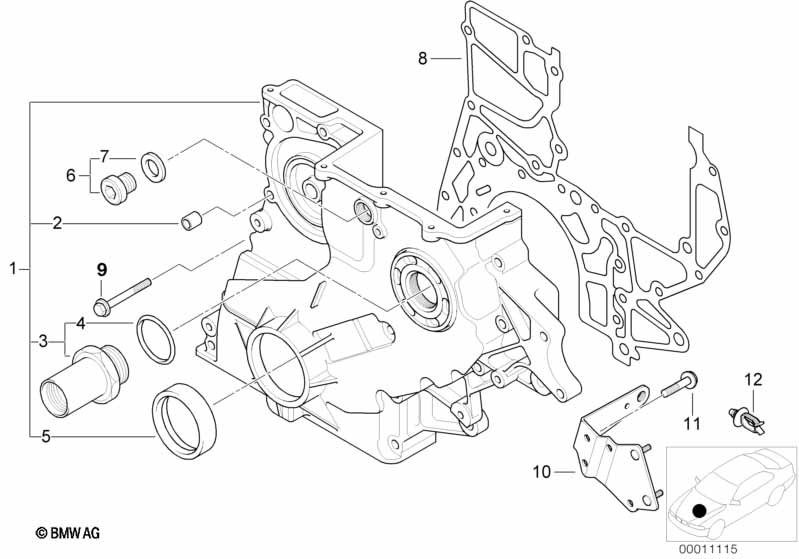

This Obudowa skrzyni łańcuchowej, dolna technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pokrywa rozrządu, dolna | 1 | 11147780077 | Shop at ECS Tuning | ||||||
| Konieczne do naprawy | ||||||||||
| -- | Uszczelniacz płynny Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Tulejka pasowana | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Sworzeń łożyskowy | 1 | 11282243506 | $28.13 | Shop at ECS Tuning | |||||
| 04 | O-Ring | 35,2X3 | 1 | 13321288696 | $1.88 | Shop at ECS Tuning | ||||
| 05 | Pierścień uszczelniający | 48X65X10 | 1 | 11142249532 | $24.02 | Shop at ECS Tuning | ||||
| 06 | Śruba z pierścieniem uszcz. | M20X1,5 | 1 | 11142244615 | Shop at ECS Tuning | |||||
| 07 | Pierścień uszczelniający | A20X24-CU | 1 | 07119963342 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Uszczelka metalowa | 1 | 11142247091 | $19.86 | Shop at ECS Tuning | |||||
| 09 | Śruba z kołnierzem | M7X56 | 12 | 11142247095 | Shop at ECS Tuning | |||||
| 10 | Uchwyt pompy wspom. i filtra oleju | 1 | 11142247092 | Zakończono | Shop at ECS Tuning | |||||
| 11 | Śruba z kołnierzem | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 12 | Uchwyt przewodu | SCHWARZ | 1 | 61131389898 | $0.55 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
