Głowica cylindrowa for BMW 3 Series E46 320d (1999)

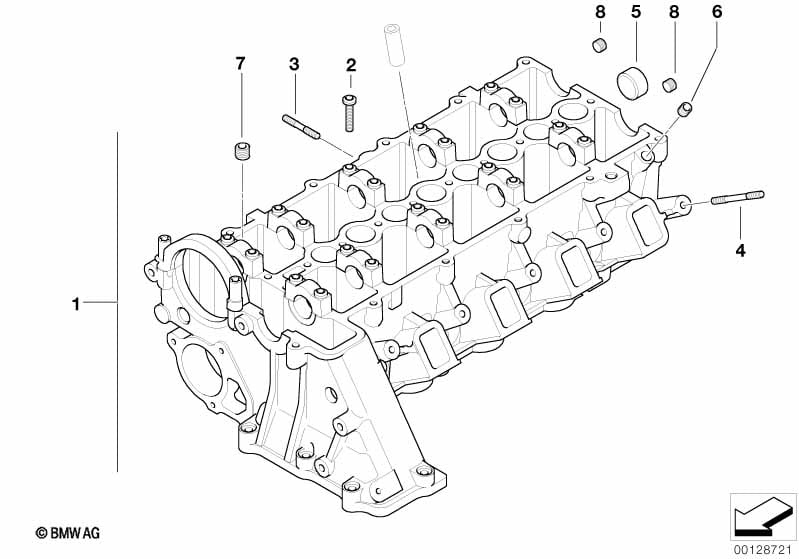

This Głowica cylindrowa technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Głowica cylindrowa | 1 | 11/1999 | 11127786361 | Shop at ECS Tuning | |||||
| 02 | Śruba torx | M6X30 | 28 | 11127806056 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Śruba dwustronna | M8X55 | 8 | 11127791553 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Śruba dwustronna | M7X65-ZNNIV-SI | 5 | 11127806054 | $0.65 | Shop at ECS Tuning | ||||
| 05 | Zaślepka | D=24MM | 2 | 07119906056 | $0.61 | Shop at ECS Tuning | ||||
| 06 | Śruba zamykająca | M8X1 | 1 | 11127568039 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Śruba zamykająca | M12X1,5-ST ZNNI | 1 | 11127806343 | $3.68 | Shop at ECS Tuning | ||||
| 08 | Śruba zamykająca | M14X1,5 | 2 | 11127568040 | $3.17 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Głowica cylindrowa?
- This technical diagram illustrates the Głowica cylindrowa within the Silnik group for the 3 Series E46 320d produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Głowica cylindrowa (Part #11127786361).
- Which models use the hardware listed in this Głowica cylindrowa?
- The hardware and components featured in the Głowica cylindrowa are specific to the 3 Series E46 320d produced during 1999. These technical specifications ensure that parts like the Głowica cylindrowa (11127786361) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Głowica cylindrowa assembly?
- Each item in the Głowica cylindrowa corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Głowica cylindrowa by locating its position on the schematic, which then links to the official BMW part number 11127786361 for the Silnik section.
