Elementy dodatkowe głowicy cylindrów for BMW 3 Series E46 320d (1999)

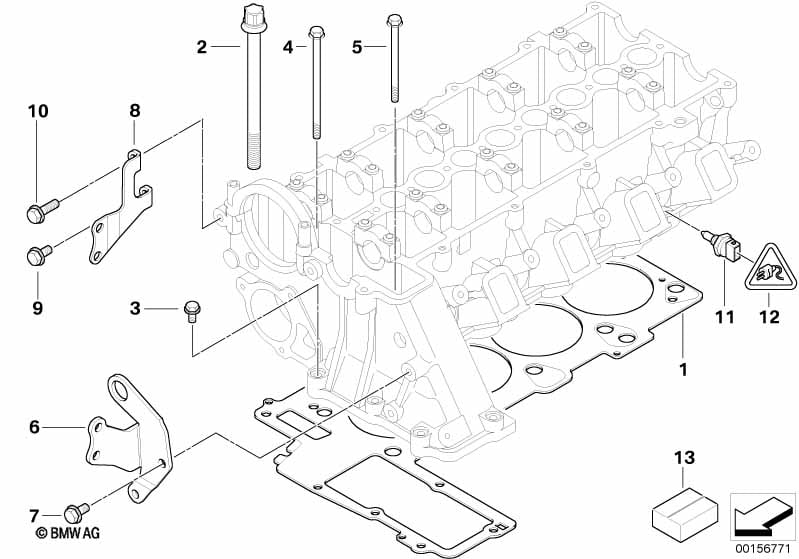

This Elementy dodatkowe głowicy cylindrów technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uszczelka głow. silnika bezazbestowa | 1-LOCH | 1 | 11122247498 | Shop at ECS Tuning | |||||
| 01 | Uszczelka głow. silnika bezazbestowa | 2-LOCH | 1 | 11122247499 | Shop at ECS Tuning | |||||
| 01 | Uszczelka głow. silnika bezazbestowa | 3-LOCH | 1 | 11122247500 | Shop at ECS Tuning | |||||
| 01 | Uszczelka głow. silnika bezazbestowa | 0-LOCH | 1 | 11127788636 | $140.71 | Shop at ECS Tuning | ||||
| 02 | Kpl. śrub do głowicy silnika | M12X1,5X147 | 1 | 11129067792 | $53.70 | Shop at ECS Tuning | ||||
| 03 | Śruba z podkładką | M6X35-U1-8.8 | 4 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Śruba sześciokątna | M6X115 | 1 | 11122247194 | Shop at ECS Tuning | |||||
| 04 | Śruba sześciokątna | M6X115 | 1 | 07119906910 | Shop at ECS Tuning | |||||
| 05 | Śruba sześciokątna | M6X80 | 1 | 11122246882 | Shop at ECS Tuning | |||||
| 06 | Ucho do podwieszania | 1 | 11122247889 | Shop at ECS Tuning | ||||||
| 07 | Śruba z podkładką | M8X18-Z1-ZNS3 | 2 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Uchwyt | 1 | 11122247893 | Shop at ECS Tuning | ||||||
| 09 | Śruba sześciokątna | M8X14-8.8-ZNS3 | 1 | 07119902922 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Śruba sześciokątna | M8X30-Z1-10.9 | 1 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 11 | Czujnik temperatury płynu chłodz./oleju | 1 | 13621433076 | $16.27 | Shop at ECS Tuning | |||||
| 12 | Obudowa gniazda | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy SLK 2,8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| 13 | Zest. uszcz. gł. silnika, bezazbest. | 1 | 11122247501 | $163.76 | Shop at ECS Tuning | |||||
| Zestaw uszczelek bez uszcz. głowicy cyl. | ||||||||||
Uwagi
- SI = Service-Information (Informacja serwisowa)
