Pokrywa głowicy for BMW 3 Series E46 320d (1999)

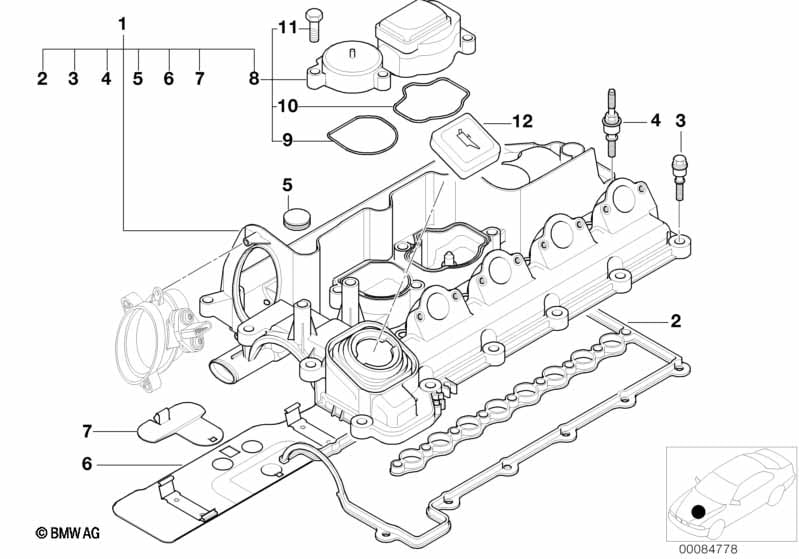

This Pokrywa głowicy technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pokrywa głowicy | 1 | 11122249680 | Shop at ECS Tuning | ||||||
| 02 | Uszczelka | 1 | 11122246996 | $32.00 | Shop at ECS Tuning | |||||
| 03 | Kpl. elementu mocującego zewn. | 1 | 11120036233 | Shop at ECS Tuning | ||||||
| 04 | Kpl. elementu mocującego wewn. | 1 | 11120036236 | Shop at ECS Tuning | ||||||
| 05 | Zaślepka | 3 | 11122247705 | Shop at ECS Tuning | ||||||
| 06 | Osłona cieplna | 1 | 13712247370 | Shop at ECS Tuning | ||||||
| 07 | Zaślepka | 3 | 11122248580 | $17.52 | Shop at ECS Tuning | |||||
| 08 | Odpowietrznik | 1 | 11127791552 | $64.68 | Shop at ECS Tuning | |||||
| 09 | Uszczelka | 1 | 11122247686 | Shop at ECS Tuning | ||||||
| 10 | Uszczelka | 1 | 11127793166 | Shop at ECS Tuning | ||||||
| 11 | Śruba | 4 | 11127803813 | $3.17 | Shop at ECS Tuning | |||||
| 12 | Korek króćca wlewu oleju | 1 | 11127509328 | $7.78 | Shop at ECS Tuning |
