Napęd pasowy-amortyzator drgań for BMW 3 Series E46 320d (1999)

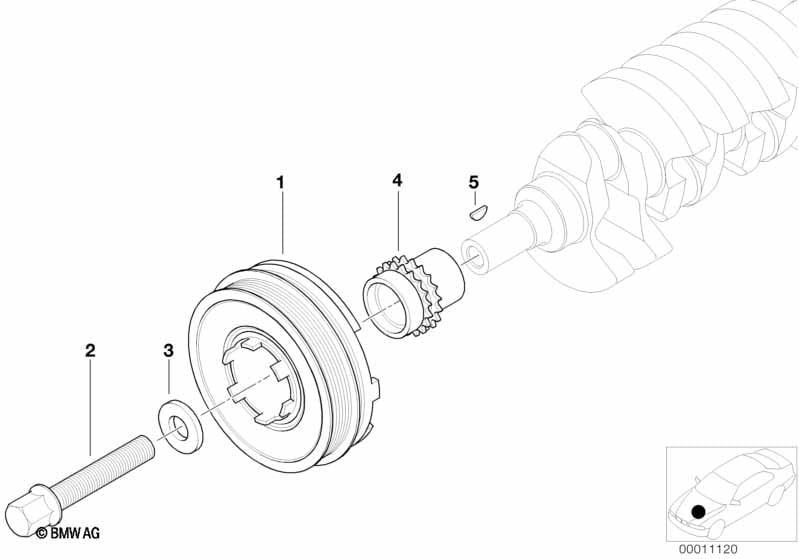

This Napęd pasowy-amortyzator drgań technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tłumik drgań | 1 | 04/1998 | 11232247565 | $388.48 | Shop at ECS Tuning | ||||
| 02 | Śruba sześciokątna | M18X1,5X102 | 1 | 11232248268 | $8.10 | Shop at ECS Tuning | ||||
| 03 | Podkładka | 1 | 11232247260 | $3.52 | Shop at ECS Tuning | |||||
| 04 | Koło zębate wału korbowego | 1 | 11212246813 | Shop at ECS Tuning | ||||||
| 05 | Sprężyna krążkowa | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Napęd pasowy-amortyzator drgań?
- This technical diagram illustrates the Napęd pasowy-amortyzator drgań within the Silnik group for the 3 Series E46 320d produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Tłumik drgań (Part #11232247565).
- Which models use the hardware listed in this Napęd pasowy-amortyzator drgań?
- The hardware and components featured in the Napęd pasowy-amortyzator drgań are specific to the 3 Series E46 320d produced during 1999. These technical specifications ensure that parts like the Tłumik drgań (11232247565) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Napęd pasowy-amortyzator drgań assembly?
- Each item in the Napęd pasowy-amortyzator drgań corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Tłumik drgań by locating its position on the schematic, which then links to the official BMW part number 11232247565 for the Silnik section.
