Mechanizm ster.-wałek rozrządu for BMW 3 Series E46 320d (1999)

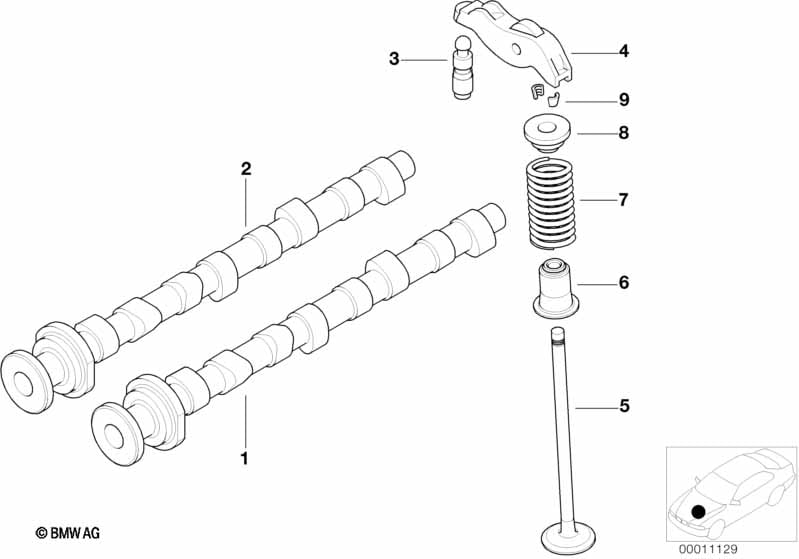

This Mechanizm ster.-wałek rozrządu technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wałek rozrządu zaworów ssących | 1 | 11312246495 | Shop at ECS Tuning | ||||||
| 02 | Wałek rozrządu zaworów wydechowych | 1 | 11312246496 | Shop at ECS Tuning | ||||||
| 03 | Element wyrównawczy | 16 | 11332249817 | $21.42 | Shop at ECS Tuning | |||||
| 04 | Dźwigienka zaworowa | 16 | 11332248878 | $33.04 | Shop at ECS Tuning | |||||
| 05 | Zawór ssący/wydechowy | 25,9/5,92MM | 16 | 11342247077 | $24.08 | Shop at ECS Tuning | ||||
| 06 | Zestaw napr.-uszczeln. trzonka zaworu | 1 | 11349070982 | Shop at ECS Tuning | ||||||
| 07 | Sprężyna zaworu | 16 | 11342247172 | $7.88 | Shop at ECS Tuning | |||||
| 08 | Gniazdo sprężyny dolne | 16 | 11342246523 | $3.77 | Shop at ECS Tuning | |||||
| 09 | Grzybek zaworu | D=6 | 32 | 11341461405 | $1.34 | Shop at ECS Tuning |
