Miska olejowa/urz. do pom.oleju for BMW 3 Series E46 330d (2002)

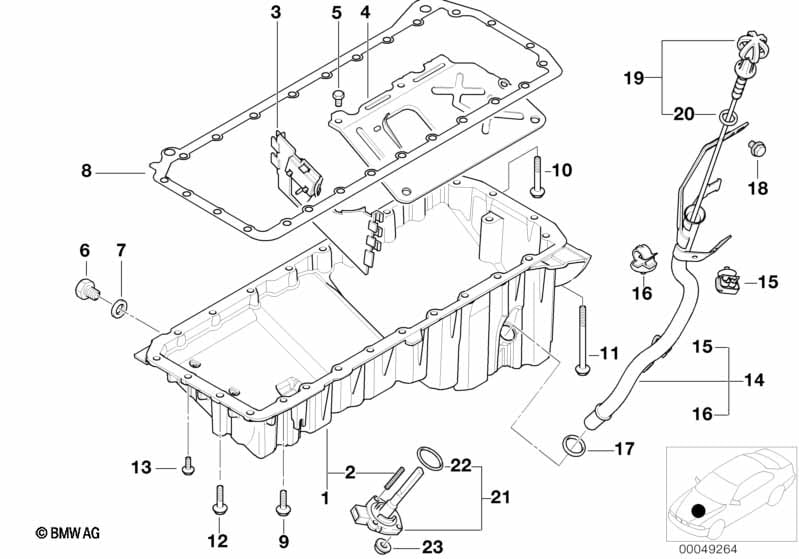

This Miska olejowa/urz. do pom.oleju technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Misa olejowa | 1 | 11137791531 | +podst | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Uszczelniacz płynny Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Śruba dwustronna | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Ściana falista | 1 | 11132246526 | Zakończono | Shop at ECS Tuning | |||||
| 04 | Blacha falista | 1 | 11132246913 | Shop at ECS Tuning | ||||||
| 05 | Śruba z kołnierzem | M6 X 16 | 5 | 12517805605 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Śruba zamykająca | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 07 | Pierścień uszczelniający | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Uszczelka misy olejowej | 1 | 11130149329 | $48.50 | Shop at ECS Tuning | |||||
| 09 | Śruba torx | M6X22 | 17 | 11137800619 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Śruba torx | M6X60-ZNNIV SI | 2 | 11137800622 | $1.08 | Shop at ECS Tuning | ||||
| 11 | Śruba torx | M6X100 | 2 | 11137800623 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Śruba | M8X30 | 3 | 11138592611 | Shop at ECS Tuning | |||||
| 13 | Śruba torx | M8X80 | 1 | 11137800624 | Shop at ECS Tuning | |||||
| 14 | Rurka prowadząca | 1 | 11432249976 | Shop at ECS Tuning | ||||||
| 15 | Zatrzask kablowy | 1 | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 16 | Spinka | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 17 | O-Ring | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 18 | Śruba z podkładką | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Miarka poziomu oleju | 1 | 11437786015 | Shop at ECS Tuning | ||||||
| 20 | O-Ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 21 | Czujnik poziomu oleju | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 22 | Pierścień uszczelniający | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 23 | Nakrętka sześciokątna | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Miska olejowa/urz. do pom.oleju?
- This technical diagram illustrates the Miska olejowa/urz. do pom.oleju within the Silnik group for the 3 Series E46 330d produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Misa olejowa (Part #11137791531).
- Which models use the hardware listed in this Miska olejowa/urz. do pom.oleju?
- The hardware and components featured in the Miska olejowa/urz. do pom.oleju are specific to the 3 Series E46 330d produced during 2002. These technical specifications ensure that parts like the Misa olejowa (11137791531) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Miska olejowa/urz. do pom.oleju assembly?
- Each item in the Miska olejowa/urz. do pom.oleju corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Misa olejowa by locating its position on the schematic, which then links to the official BMW part number 11137791531 for the Silnik section.
