Sterowanie zaworów-wałek mimośrodowy for BMW 3 Series E90 318i (2006)

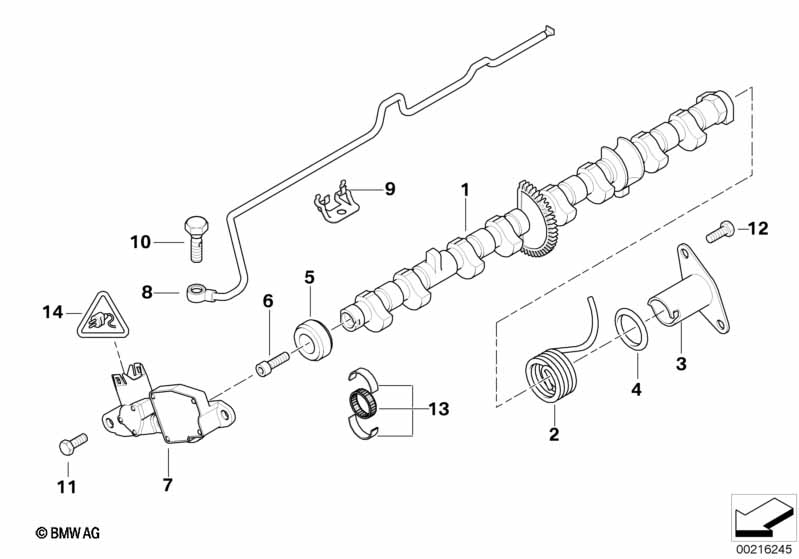

This Sterowanie zaworów-wałek mimośrodowy technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wałek mimośrodowy | 1 | 11377578543 | Shop at ECS Tuning | ||||||
| 02 | Sprężyna skręcana | 1 | 11377508254 | $7.92 | Shop at ECS Tuning | |||||
| 03 | Tuleja mocująca | 1 | 11377576093 | Shop at ECS Tuning | ||||||
| 04 | O-Ring | 25X3 | 1 | 11377510030 | $1.81 | Shop at ECS Tuning | ||||
| 05 | Koło magnetyczne | 1 | 11377534164 | $50.82 | Shop at ECS Tuning | |||||
| 06 | Śruba z łbem walcowym do koła magnet. | M6X20-A2 | 1 | 07119903465 | $0.74 | Shop at ECS Tuning | ||||
| 07 | Czujnik wałka mimośrodowego | 1 | 11377527016 | $367.58 | Shop at ECS Tuning | |||||
| 08 | Przewód olejowy | 1 | 11127501377 | $18.93 | Shop at ECS Tuning | |||||
| 09 | Klamra | 2 | 11127501417 | $0.27 | Shop at ECS Tuning | |||||
| 10 | Śruba drążona | M7X16 | 1 | 11127523715 | Shop at ECS Tuning | |||||
| 11 | Śruba sześciokątna | M6X14 | 3 | 07119913450 | $0.22 | Shop at ECS Tuning | ||||
| Dla samochodów z Montaż CKD, Indie |
S9C2A=Tak |
|||||||||
| 12 | Śruba | M6X16-8.8 ZNNIV | 2 | 07119906443 | Shop at ECS Tuning | |||||
| Dla samochodów z Montaż CKD, Indie |
S9C2A=Nie |
|||||||||
| 12 | Śruba sześciokątna | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Łożysko igiełkowe | 4 | 11377615379 | Shop at ECS Tuning | ||||||
