Mechanizm ster.-łańcuch sterujący for BMW MINI R50 Cooper (2004)

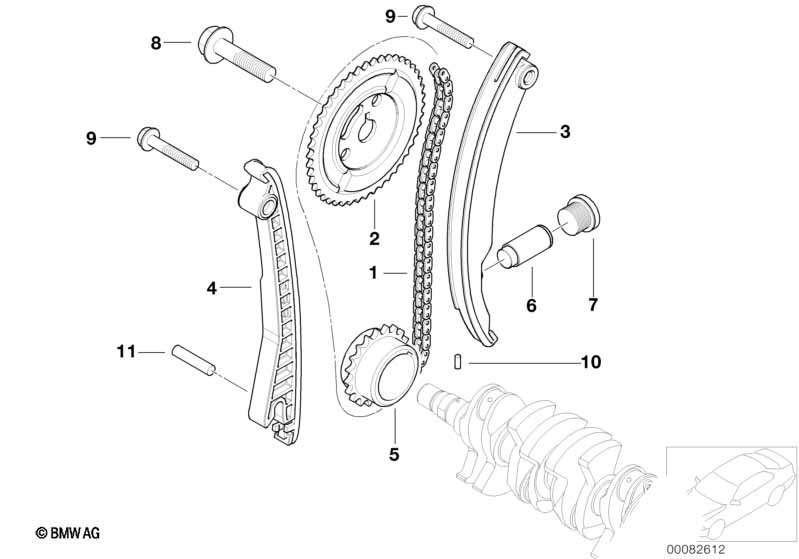

This Mechanizm ster.-łańcuch sterujący technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP łańcuch rozrządu | 1 | 11311485400 | $65.27 | Shop at ECS Tuning | |||||
| 01 | RP REMAN łańcuch rozrządu | 1 | 11312465001 | Zakończono | Shop at ECS Tuning | |||||
| 02 | Koło łańcuchowe | 1 | 11311485403 | $53.05 | Shop at ECS Tuning | |||||
| 02 | RP REMAN koło łańcuchowe | 1 | 11312465003 | Shop at ECS Tuning | ||||||
| 03 | RP szyna napinająca | 1 | 11318648241 | Shop at ECS Tuning | ||||||
| 03 | RP REMAN szyna napinająca | 1 | 11312465017 | Shop at ECS Tuning | ||||||
| 04 | RP szyna prowadząca | 1 | 11311485397 | $32.22 | Shop at ECS Tuning | |||||
| 04 | RP REMAN szyna prowadząca | 1 | 11312465000 | Shop at ECS Tuning | ||||||
| 05 | RP koło łańcuchowe | 1 | 11211485402 | $36.43 | Shop at ECS Tuning | |||||
| 05 | RP REMAN koło łańcuchowe | 1 | 11212465002 | Shop at ECS Tuning | ||||||
| 06 | RP napinacz łańcucha | 1 | 11317510801 | $42.83 | Shop at ECS Tuning | |||||
| 06 | RP REMAN napinacz łańcucha | 1 | 11312465008 | Shop at ECS Tuning | ||||||
| 08 | Śruba z podkładką | M12X52 | 1 | 07137829910 | $3.82 | Shop at ECS Tuning | ||||
| 09 | Śruba z podkładką | M8X45 | 2 | 11317829911 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Kołek walcowy | 4X10 | 1 | 07119942050 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Sworzeń łożyskowy | 1 | 07101485596 | $1.89 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
