Głowica cylindrowa for BMW 3 Series E90 318i (2006)

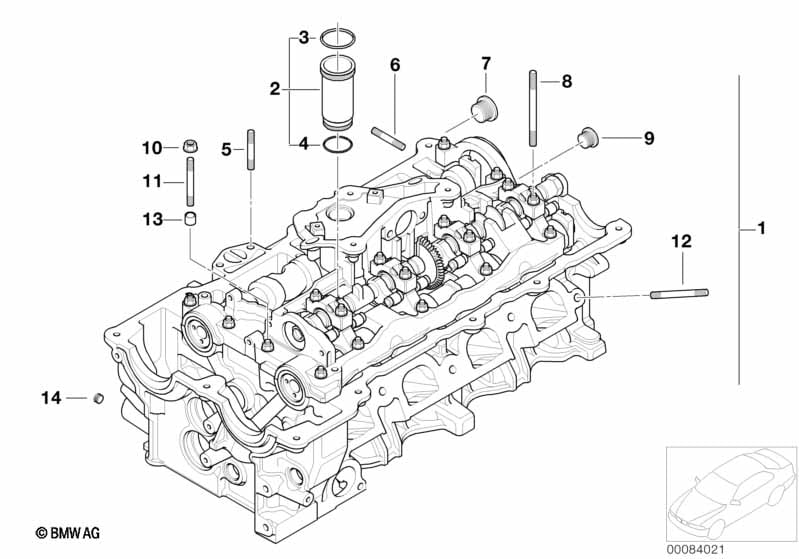

This Głowica cylindrowa technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Głowica silnika z zespołem zaworów | 1 | 11127578026 | Shop at ECS Tuning | ||||||
| 02 | Rurka świecy zapłonowej | 4 | 11377509627 | $5.12 | Shop at ECS Tuning | |||||
| 03 | O-Ring | 30,2X3,0 | 4 | 11377514007 | $1.27 | Shop at ECS Tuning | ||||
| 04 | O-Ring | 25,3X2,4 | 4 | 11377514008 | $1.81 | Shop at ECS Tuning | ||||
| 06 | Śruba dwustronna | M7X37 | 9 | 07129906003 | Shop at ECS Tuning | |||||
| 08 | Śruba dwustronna | M6X80 | 8 | 07129902313 | Shop at ECS Tuning | |||||
| 09 | Śruba zamykająca | M14X1,5 | 2 | 11127568040 | $3.17 | Shop at ECS Tuning | ||||
| 10 | Nakrętka kołnierzowa | M6 | 27 | 11127568178 | Shop at ECS Tuning | |||||
| 11 | Śruba dwustronna | M6X50 | 19 | 07129902312 | Shop at ECS Tuning | |||||
| 12 | Śruba dwustronna | M7X60 | 4 | 07129904547 | Shop at ECS Tuning | |||||
| 13 | Tulejka pasowana | D=7,5MM | 3 | 11127606504 | Shop at ECS Tuning | |||||
| 14 | Śruba zamykająca | M8X1 | 1 | 11127568039 | $1.07 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i Głowica cylindrowa?
- This technical diagram illustrates the Głowica cylindrowa within the Silnik group for the 3 Series E90 318i produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Głowica silnika z zespołem zaworów (Part #11127578026).
- Which models use the hardware listed in this Głowica cylindrowa?
- The hardware and components featured in the Głowica cylindrowa are specific to the 3 Series E90 318i produced during 2006. These technical specifications ensure that parts like the Głowica silnika z zespołem zaworów (11127578026) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Głowica cylindrowa assembly?
- Each item in the Głowica cylindrowa corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Głowica silnika z zespołem zaworów by locating its position on the schematic, which then links to the official BMW part number 11127578026 for the Silnik section.
