Napęd pasowy-amortyzator drgań for BMW 3 Series E90 318i (2006)

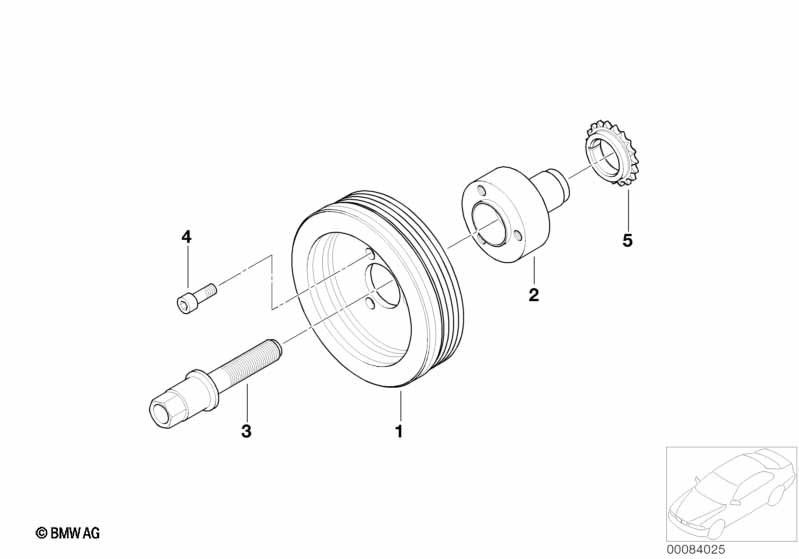

This Napęd pasowy-amortyzator drgań technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tłumik drgań | 1 | 05/2006 | 11237505829 | $388.48 | Zakończono | Shop at ECS Tuning | |||
| 02 | Piasta | 1 | 05/2006 | 11237551309 | Shop at ECS Tuning | |||||
| 03 | Śruba sześciokątna | 1 | 11237503107 | Shop at ECS Tuning | ||||||
| 04 | Śruba z łbem walcowym | M8X20 | 3 | 05/2006 | 07119919970 | Shop at ECS Tuning | ||||
| 05 | Koło łańcuchowe | 2 | 11317502180 | $15.63 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i Napęd pasowy-amortyzator drgań?
- This technical diagram illustrates the Napęd pasowy-amortyzator drgań within the Silnik group for the 3 Series E90 318i produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Tłumik drgań (Part #11237505829).
- Which models use the hardware listed in this Napęd pasowy-amortyzator drgań?
- The hardware and components featured in the Napęd pasowy-amortyzator drgań are specific to the 3 Series E90 318i produced during 2006. These technical specifications ensure that parts like the Tłumik drgań (11237505829) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Napęd pasowy-amortyzator drgań assembly?
- Each item in the Napęd pasowy-amortyzator drgań corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Tłumik drgań by locating its position on the schematic, which then links to the official BMW part number 11237505829 for the Silnik section.
