Mechanizm ster.-łańcuch sterujący for BMW 3 Series E90 318i (2006)

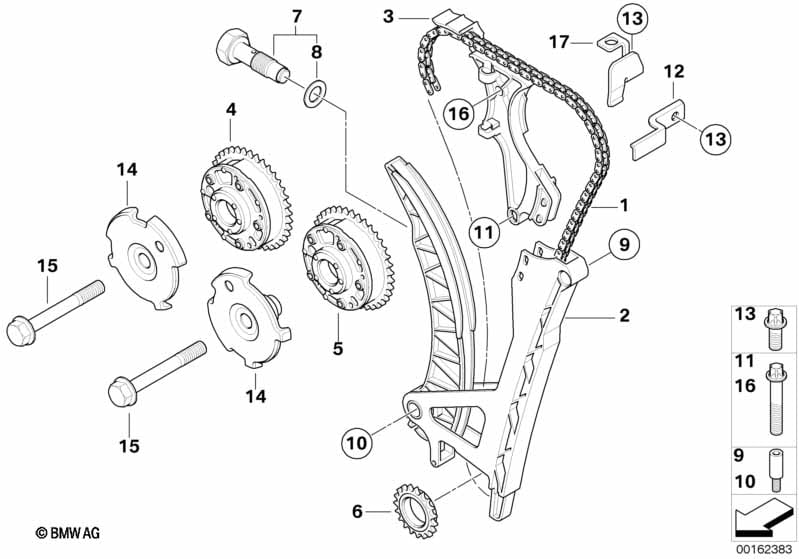

This Mechanizm ster.-łańcuch sterujący technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Łańcuch rozdządu | 1 | 11348649768 | Shop at ECS Tuning | ||||||
| 02 | Szyna napinająco-prowadząca | 1 | 11317512520 | $45.37 | Shop at ECS Tuning | |||||
| 03 | Szyna ślizgowa | 1 | 11317505608 | $16.11 | Shop at ECS Tuning | |||||
| 04 | Zesp. regulacyjny wałka roz.zaw.wydech. | 1 | 11361707315 | $319.11 | Shop at ECS Tuning | |||||
| 05 | Zesp. regulacyjny wałka roz.zaw.ssących | 1 | 11367500032 | $319.11 | Shop at ECS Tuning | |||||
| 06 | Koło łańcuchowe | 1 | 11317502180 | $15.63 | Shop at ECS Tuning | |||||
| 07 | Napinacz łańcucha | 1 | 11318685091 | Shop at ECS Tuning | ||||||
| 08 | Pierścień uszczelniający | A22X27 | 1 | 11317631972 | Shop at ECS Tuning | |||||
| 09 | Sworzeń łożyskowy | 1 | 11317592878 | Shop at ECS Tuning | ||||||
| 10 | Sworzeń łożyskowy | 1 | 11318676215 | Shop at ECS Tuning | ||||||
| 11 | Śruba torx | M6X35 | 1 | 07129903192 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Blacha prowadząca | 1 | 11317506365 | $0.57 | Shop at ECS Tuning | |||||
| 13 | Śruba ISA | M6X14 | 1 | 07129903027 | $1.20 | Shop at ECS Tuning | ||||
| 14 | Kółko czujnika impulsów | 2 | 11367504629 | $10.95 | Shop at ECS Tuning | |||||
| 15 | Śruba z kołnierzem | M10X1X86 | 2 | 11367500574 | $2.68 | Shop at ECS Tuning | ||||
| 16 | Śruba torx | M6X35 | 1 | 07129903192 | $0.65 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i Mechanizm ster.-łańcuch sterujący?
- This technical diagram illustrates the Mechanizm ster.-łańcuch sterujący within the Silnik group for the 3 Series E90 318i produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Łańcuch rozdządu (Part #11348649768).
- Which models use the hardware listed in this Mechanizm ster.-łańcuch sterujący?
- The hardware and components featured in the Mechanizm ster.-łańcuch sterujący are specific to the 3 Series E90 318i produced during 2006. These technical specifications ensure that parts like the Łańcuch rozdządu (11348649768) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mechanizm ster.-łańcuch sterujący assembly?
- Each item in the Mechanizm ster.-łańcuch sterujący corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Łańcuch rozdządu by locating its position on the schematic, which then links to the official BMW part number 11348649768 for the Silnik section.
