Miska olej., cz. dol./urz. do pom.oleju for BMW 7 Series E65 745i (2003)

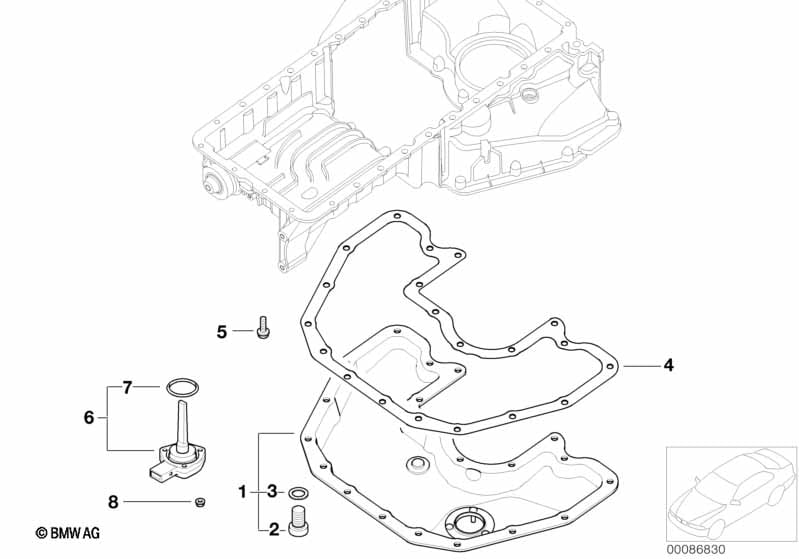

This Miska olej., cz. dol./urz. do pom.oleju technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Misa olejowa | 1 | 11137574532 | $222.76 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Uszczelniacz płynny Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Śruba zamykająca | M18X1,5-ZNNIV | 1 | 07119905428 | $11.47 | Shop at ECS Tuning | ||||
| 03 | Pierścień uszczelniający | A18X22-CU | 1 | 07119963308 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Uszczelka metalowa | 1 | 11137506774 | $36.04 | Shop at ECS Tuning | |||||
| 05 | Śruba z podkładką | M8X20-U1 | 20 | 07119905396 | $0.71 | Shop at ECS Tuning | ||||
| Przed wymianą czujnika poziomu oleju koniecznie przestrzegać czynności PuMA 29604954! |
||||||||||
| 06 | Czujnik poziomu oleju | 1 | 12617607910 | Shop at ECS Tuning | ||||||
| 07 | Pierścień uszczelniający | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 08 | Nakrętka z podkładką | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Miska olej., cz. dol./urz. do pom.oleju?
- This technical diagram illustrates the Miska olej., cz. dol./urz. do pom.oleju within the Silnik group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Misa olejowa (Part #11137574532).
- Which models use the hardware listed in this Miska olej., cz. dol./urz. do pom.oleju?
- The hardware and components featured in the Miska olej., cz. dol./urz. do pom.oleju are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Misa olejowa (11137574532) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Miska olej., cz. dol./urz. do pom.oleju assembly?
- Each item in the Miska olej., cz. dol./urz. do pom.oleju corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Misa olejowa by locating its position on the schematic, which then links to the official BMW part number 11137574532 for the Silnik section.
