Pom. pow. ukł. red. sub. szkodl. spal. for BMW 7 Series E65 745i (2003)

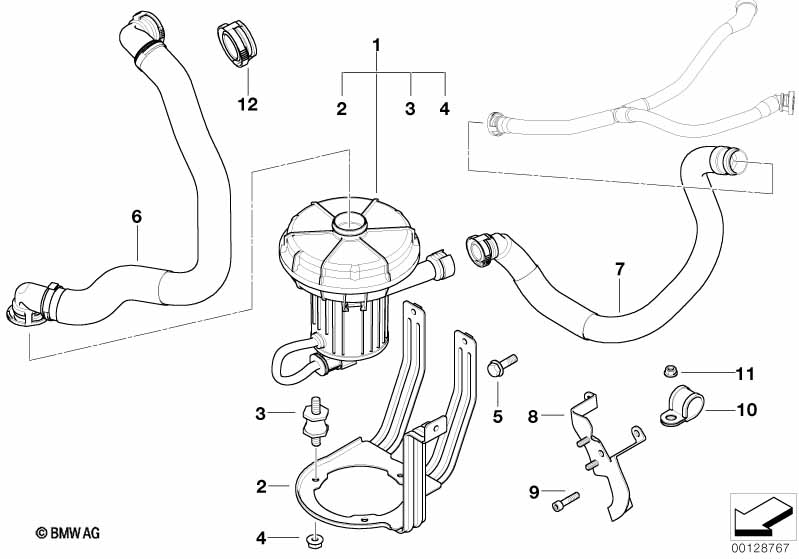

This Pom. pow. ukł. red. sub. szkodl. spal. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa powietrza | 1 | 11727572582 | $399.52 | Shop at ECS Tuning | |||||
| 03 | Łożysko gumowe | 3 | 11727571866 | $7.35 | Shop at ECS Tuning | |||||
| 04 | Nakrętka z podkładką | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Śruba sześciokątna | 3 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 06 | Przewód ssący | 1 | 11727508268 | $56.98 | Shop at ECS Tuning | |||||
| 07 | Przewód elastyczny ciśnieniowy | 1 | 11727556959 | $57.87 | +podst | Shop at ECS Tuning | ||||
| 08 | Uchwyt | 1 | 11727506095 | $9.52 | Shop at ECS Tuning | |||||
| 09 | Śruba torx | M6X25-ZNNIV SI | 3 | 07129905569 | $0.45 | Shop at ECS Tuning | ||||
| 10 | Opaska na węże | 1 | 64531372613 | $1.54 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| Dla samochodów z Wersja na benzynę ołowiową |
S199A=Tak |
|||||||||
| 12 | Zaślepka | 1 | 11727505703 | $7.14 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
