Przew. ukł. red. sub. szkodl. spal. for BMW 7 Series E65 745i (2003)

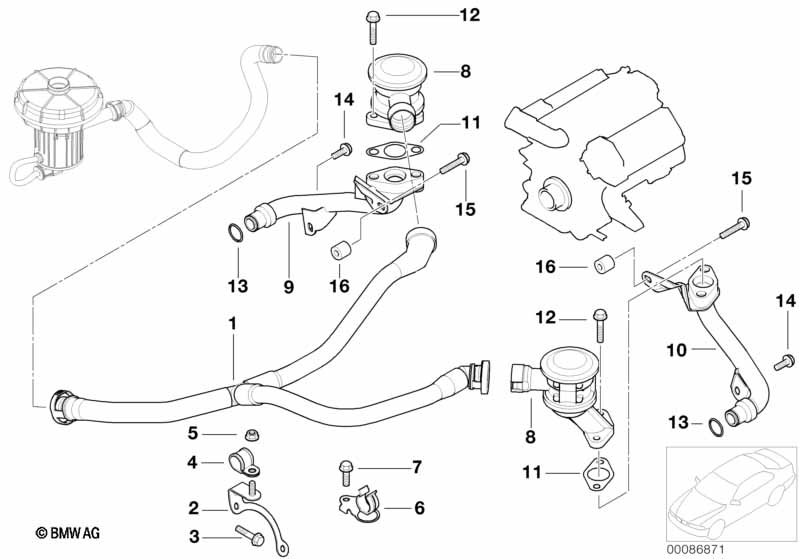

This Przew. ukł. red. sub. szkodl. spal. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód elastyczny ciśnieniowy | 1 | 11727508270 | $57.87 | Shop at ECS Tuning | |||||
| 02 | Uchwyt | 1 | 11727508275 | $4.58 | Shop at ECS Tuning | |||||
| 03 | Śruba z podkładką | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Opaska na węże | 1 | 64531372613 | $1.54 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Uchwyt | 2 | 11727507837 | $3.08 | Shop at ECS Tuning | |||||
| 07 | Śruba z podkładką | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Zawór | 2 | 11727553101 | $114.19 | Shop at ECS Tuning | |||||
| 09 | Przewód powietrza | ZYL 1-4 | 1 | 11727541418 | $35.35 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | O-Ring | 14X1,9 | 1 | 11727541417 | $1.19 | Shop at ECS Tuning | ||||
| 10 | Przewód powietrza | ZYL 5-8 | 1 | 11727541419 | $35.35 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | O-Ring | 14X1,9 | 1 | 11727541417 | $1.19 | Shop at ECS Tuning | ||||
| 11 | Uszczelka | 2 | 11727506214 | $4.73 | Shop at ECS Tuning | |||||
| 12 | Śruba z podkładką | M6X28-U1-ZNS3 | 4 | 07119902896 | $0.76 | Shop at ECS Tuning | ||||
| 13 | O-Ring | 14X1,8 | 2 | 03/2004 | 07119901511 | $0.47 | Shop at ECS Tuning | |||
| 14 | Śruba z podkładką | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 15 | Śruba z podkładką | M6X30-ZNNIV SI | 2 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 16 | Tulejka dystansowa | 2 | 11727508276 | $3.98 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
