Ster. zaw.-wałek mimośr.,silnik nast. for BMW 7 Series E65 745i (2003)

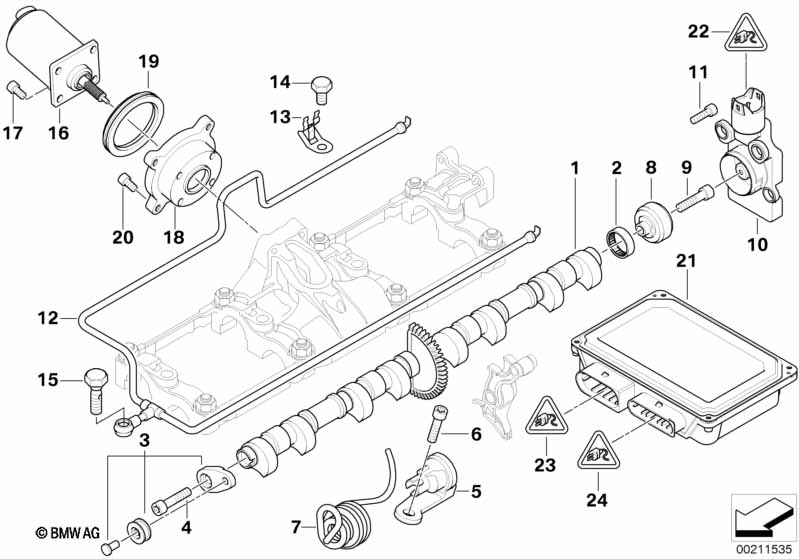

This Ster. zaw.-wałek mimośr.,silnik nast. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wałek mimośrodowy | 1 | 02/2003 | 07/2004 | 11377524182 | $687.30 | Zakończono | Shop at ECS Tuning | ||
| 01 | Wałek mimośrodowy | ZYL. 1-4 | 1 | 02/2003 | 11377541880 | $748.19 | +podst | Shop at ECS Tuning | ||
| 01 | Wałek mimośrodowy | 1 | 02/2003 | 07/2004 | 11377524182 | $687.30 | Zakończono | Shop at ECS Tuning | ||
| 01 | Wałek mimośrodowy | ZYL. 5-8 | 1 | 02/2003 | 11377541883 | $748.19 | +podst | Shop at ECS Tuning | ||
| 02 | Łożysko igiełkowe | 8 | 11377615379 | Shop at ECS Tuning | ||||||
| 08 | Koło magnetyczne | 2 | 11377534164 | $50.82 | Shop at ECS Tuning | |||||
| 09 | Śruba z łbem walcowym do koła magnet. | M6X20-A2 | 2 | 07119903465 | $0.74 | Shop at ECS Tuning | ||||
| 10 | Czujnik wałka mimośrodowego | 2 | 11377527017 | $367.58 | Shop at ECS Tuning | |||||
| 11 | Śruba ISA z podkładką | M5X16-Z1-ZNS | 6 | 01/2006 | 07129902329 | $0.60 | Zakończono | Shop at ECS Tuning | ||
| 11 | Śruba ISA z podkładką | M5X16-U1-8.8 | 6 | 07129905535 | Shop at ECS Tuning | |||||
| 12 | Przewód wtryskowy oleju | ZYL. 1-4 | 1 | 11427504496 | $31.28 | Shop at ECS Tuning | ||||
| 12 | Przewód wtryskowy oleju | ZYL. 5-8 | 1 | 11427504497 | $31.28 | Shop at ECS Tuning | ||||
| 13 | Klamra | 8 | 11427507967 | $0.35 | Shop at ECS Tuning | |||||
| 14 | Śruba sześciokątna | M7X8 | 4 | 11427512942 | $0.61 | Shop at ECS Tuning | ||||
| 15 | Śruba sześciokątna | M8X50 | 2 | 11317501744 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Siłownik | 2 | 11377548389 | $295.22 | Shop at ECS Tuning | |||||
| 17 | Śruba z łbem walcowym | M5X12-ZNNIV SI | 8 | 07119902859 | $2.35 | Shop at ECS Tuning | ||||
| 18 | Podkładka | 2 | 11377514508 | $12.85 | Shop at ECS Tuning | |||||
| 19 | O-Ring | 53,0X2,0MM | 2 | 07119903596 | $2.51 | Shop at ECS Tuning | ||||
| 20 | Śruba torx | M5X30-A2 | 8 | 07129900465 | $1.54 | Shop at ECS Tuning | ||||
| 21 | Sterownik Valvetronic | 1 | 11377575654 | $473.05 | Shop at ECS Tuning | |||||
| 22 | Obudowa gniazda niebieska | 1 | 12527515464 | $6.70 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MLK 1,2 | 0,35 MM²/AG | 9 | 61138722287 | Shop at ECS Tuning | |||||
| -- | Uszczelnienie przewodu pojedynczego | 0,22-1,0MM² | 9 | 12527503411 | $0.18 | Shop at ECS Tuning | ||||
| 23 | Obudowa gniazda | 1 | 12527515466 | $6.70 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk gniazda MLK 1,2 | 0,50 MM²/AG | 23 | 61136820598 | Shop at ECS Tuning | |||||
| 24 | Obudowa wtyczki, niekodowana | 10 POL. | 1 | 12527515465 | $6.70 | Zakończono | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Styk gniazda MLK 1,2 | 0,75-1,0 MM² AG | 10 | 61138735979 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
