Kolektor spalin AGR for BMW 5 Series E60 525d (2007)

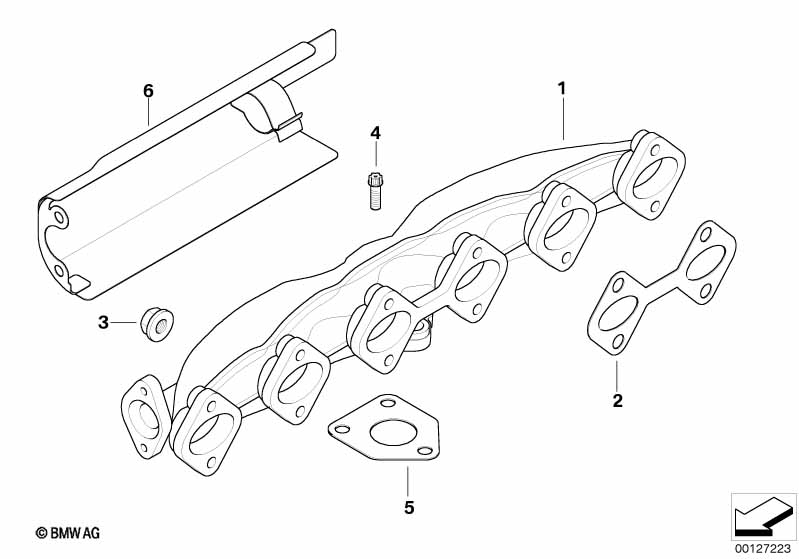

This Kolektor spalin AGR technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kolektor wydechowy | 1 | 11627788422 | $454.86 | Shop at ECS Tuning | |||||
| 02 | Uszczelka metalowa | 3 | 11627798177 | Shop at ECS Tuning | ||||||
| 03 | Nakrętka kołnierzowa | M8 | 12 | 11627789015 | $0.43 | Shop at ECS Tuning | ||||
| 04 | Śruba | M10X25 | 3 | 02/2025 | 11652243402 | $5.37 | Shop at ECS Tuning | |||
| 04 | Śruba | M10X25 | 3 | 07145B5ABD4 | Shop at ECS Tuning | |||||
| 05 | Uszczelka | 1 | 11627795266 | $10.94 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Śruba | M10X25 | 3 | 11652243402 | $5.37 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525d Kolektor spalin AGR?
- This technical diagram illustrates the Kolektor spalin AGR within the Silnik group for the 5 Series E60 525d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Kolektor wydechowy (Part #11627788422).
- Which models use the hardware listed in this Kolektor spalin AGR?
- The hardware and components featured in the Kolektor spalin AGR are specific to the 5 Series E60 525d produced during 2007. These technical specifications ensure that parts like the Kolektor wydechowy (11627788422) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kolektor spalin AGR assembly?
- Each item in the Kolektor spalin AGR corresponds to the numbered list below the illustration. For the 5 Series E60 525d, you can identify the Kolektor wydechowy by locating its position on the schematic, which then links to the official BMW part number 11627788422 for the Silnik section.
