Dopływ oleju-pompa olejowa, elem. poj. for BMW 7 Series E65 745i (2003)

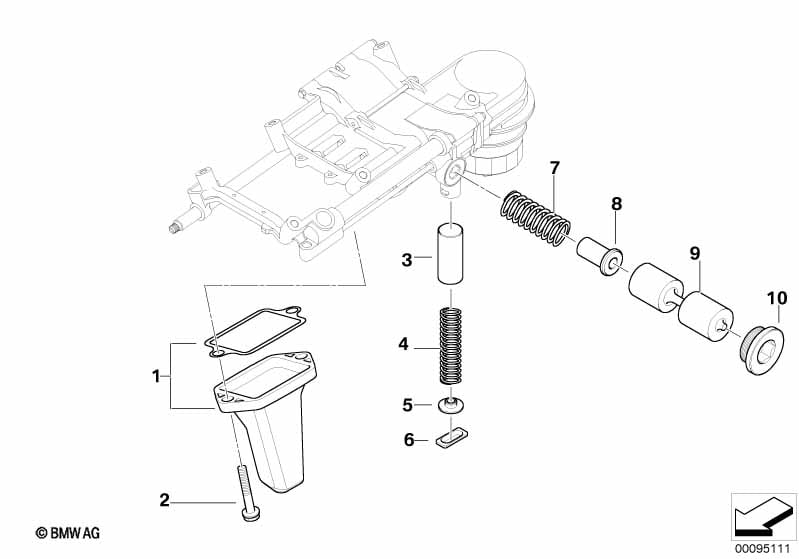

This Dopływ oleju-pompa olejowa, elem. poj. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód ssący | 1 | 10/2003 | 11417520059 | $20.25 | Shop at ECS Tuning | ||||
| 02 | Śruba z podkładką | M6X25-ZNNIV SI | 2 | 10/2003 | 07119905400 | $0.65 | Shop at ECS Tuning | |||
| 03 | Tuleja | 1 | 10/2003 | 11411747434 | $13.06 | Zakończono | Shop at ECS Tuning | |||
| 04 | Sprężyna naciskowa | 1 | 10/2003 | 11417511075 | $4.78 | Shop at ECS Tuning | ||||
| 05 | Podkładka | 1 | 10/2003 | 11417511074 | $4.28 | Shop at ECS Tuning | ||||
| 06 | Płyta zamykająca | 1 | 10/2003 | 11417505153 | $3.95 | Shop at ECS Tuning | ||||
| 07 | Sprężyna naciskowa | 1 | 10/2003 | 11417505146 | $4.78 | Shop at ECS Tuning | ||||
| 08 | Tulejka dystansowa | 1 | 10/2003 | 11417505149 | $6.85 | Shop at ECS Tuning | ||||
| 09 | Tłok | 1 | 10/2003 | 11417505143 | $20.25 | +podst | Shop at ECS Tuning | |||
| 10 | Śruba zamykająca | M28X1,5 | 1 | 10/2003 | 11417509953 | $6.45 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Dopływ oleju-pompa olejowa, elem. poj.?
- This technical diagram illustrates the Dopływ oleju-pompa olejowa, elem. poj. within the Silnik group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Przewód ssący (Part #11417520059).
- Which models use the hardware listed in this Dopływ oleju-pompa olejowa, elem. poj.?
- The hardware and components featured in the Dopływ oleju-pompa olejowa, elem. poj. are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Przewód ssący (11417520059) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Dopływ oleju-pompa olejowa, elem. poj. assembly?
- Each item in the Dopływ oleju-pompa olejowa, elem. poj. corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Przewód ssący by locating its position on the schematic, which then links to the official BMW part number 11417520059 for the Silnik section.
