Miska olejowa/urz. do pom.oleju for BMW 3 Series E90 318i (2006)

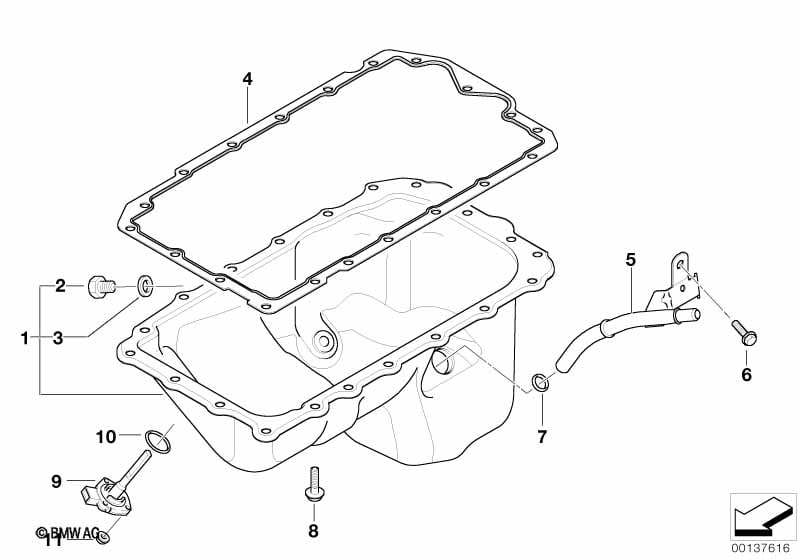

This Miska olejowa/urz. do pom.oleju technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Misa olejowa | 1 | 11137568565 | Shop at ECS Tuning | ||||||
| 02 | Śruba zamykająca | M12X1,5 | 1 | 11137568309 | Shop at ECS Tuning | |||||
| 03 | Pierścień uszczelniający | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Uszczelka | 1 | 11137511224 | $35.58 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Śruba samozabezp. | M8X28,5 | 20 | 11137551825 | Shop at ECS Tuning | |||||
| 05 | Przewód powrotny oleju | 1 | 11437525287 | Shop at ECS Tuning | ||||||
| 06 | Śruba z podkładką | M8X25-8.8-ZNNIV | 1 | 07119905394 | $0.64 | Shop at ECS Tuning | ||||
| 07 | O-Ring | 14,5X3,0 | 1 | 11437529257 | $1.19 | Shop at ECS Tuning | ||||
| 08 | Śruba samozabezp. | M8X28,5 | 20 | 11137551825 | Shop at ECS Tuning | |||||
| Uwaga! Proszę przestrzegać czynności PuMA 44286093 |
||||||||||
| 09 | Czujnik poziomu oleju | 1 | 12617501786 | $163.50 | +podst | Shop at ECS Tuning | ||||
| 10 | Pierścień uszczelniający | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 11 | Nakrętka z podkładką | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
