Odpowiet. skrzyni korb./separator oleju for BMW 3 Series E90 318i (2006)

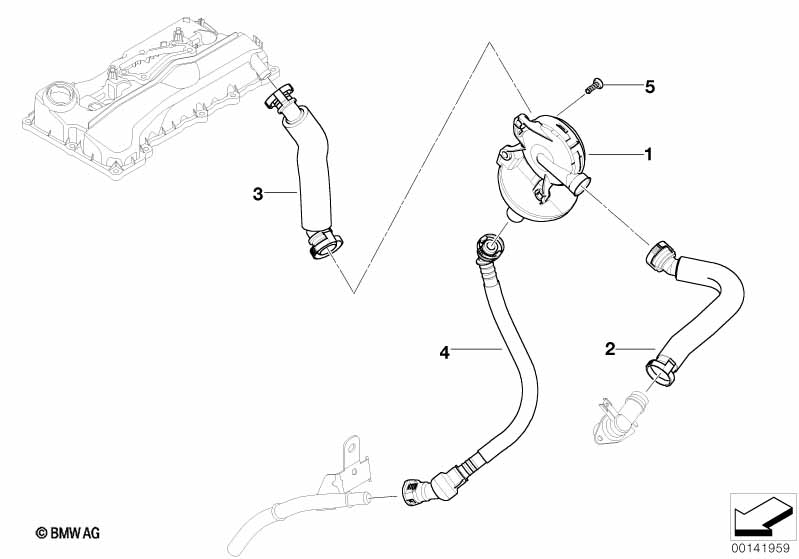

This Odpowiet. skrzyni korb./separator oleju technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oddzielacz oleju | 1 | 11617526654 | Shop at ECS Tuning | ||||||
| Dla samochodów z Wersja dla zimnych krajów |
S842A=Tak |
|||||||||
| 01 | Oddzielacz oleju | 1 | 11157533336 | Shop at ECS Tuning | ||||||
| 02 | Przewód elastyczny odpowietrzający | 1 | 11157533332 | Shop at ECS Tuning | ||||||
| Dla samochodów z Wersja dla zimnych krajów |
S842A=Tak |
|||||||||
| 02 | Przewód elastyczny odpowietrzający | 1 | 11157533333 | Shop at ECS Tuning | ||||||
| 03 | Przewód połączeniowy | 1 | 11157542633 | Shop at ECS Tuning | ||||||
| 04 | Przewód powrotny | 1 | 11157533341 | Shop at ECS Tuning | ||||||
| 05 | Śruba | K60X22 | 3 | 11617533331 | $0.75 | Shop at ECS Tuning | ||||
