Dopływ oleju/pompa olejowa z napędem for BMW MINI R56 One (2008)

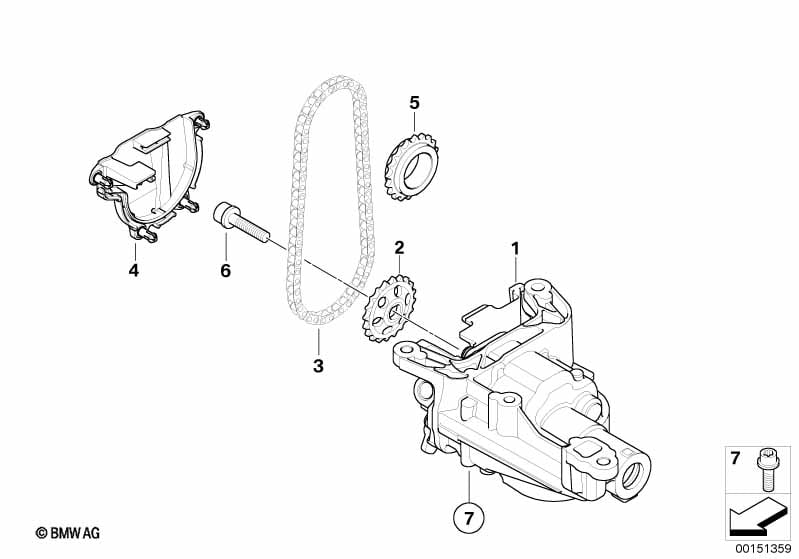

This Dopływ oleju/pompa olejowa z napędem technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa olejowa | 1 | 11417614358 | +podst | Shop at ECS Tuning | |||||
| 02 | Koło łańcuchowe | 1 | 11417548872 | $15.00 | Shop at ECS Tuning | |||||
| 03 | Łańcuch | 1 | 11277500502 | $30.08 | Shop at ECS Tuning | |||||
| 04 | Osłona | 1 | 11417558520 | $3.00 | Shop at ECS Tuning | |||||
| 05 | Koło łańcuchowe | 1 | 11217588996 | $36.43 | Shop at ECS Tuning | |||||
| 06 | Śruba ISA | M8X35 | 1 | 11417553143 | $1.03 | Shop at ECS Tuning | ||||
| 07 | Śruba ISA | M8X28 | 3 | 11417547748 | $1.03 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
